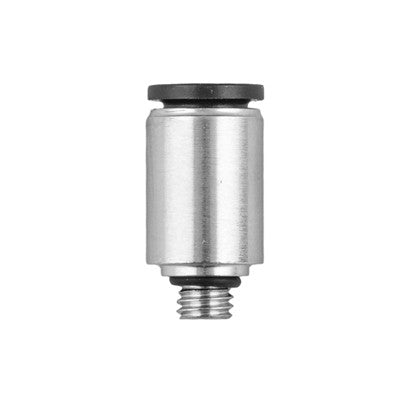

56010-6-M7 AIGNEP | 55/56 Series | Mini Straight Male Internal Hex | 6mm Tube x M7 Male | Pack of 10

56010-6-M7 by AIGNEP | 55/56 Series | Mini Male Internal Hex | 6mm Tube x M7 Male | Straight | Pack of 10

Save $10.17

$25.42

$25.42 - $25.42

$25.42

$15.25

$15.25 - $15.25

$15.25

Package Quantity: 10 ea

Specifications for Variant SKU: 56010-6-M7 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Mini Straight Male With Internal Hex - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

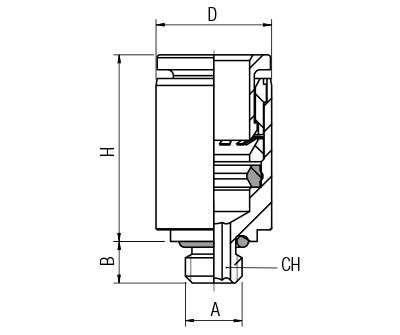

Product Number	Tube	A	B	H	CH	D
56010-4-M5	4 mm	M5	3.6 mm	14 mm	2.5 mm	8.5 mm
56010-4-M7	4 mm	M7	5 mm	14 mm	3 mm	10 mm
56010-6-M5	6 mm	M5	3.6 mm	16 mm	2.5 mm	10 mm
56010-6-M7	6 mm	M7	5 mm	16 mm	3 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
