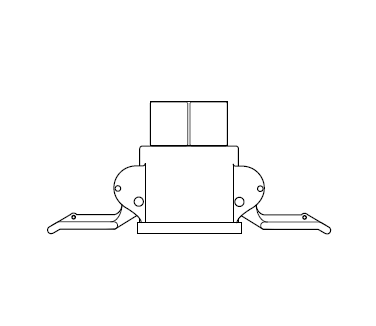

5601337 by NewAge | Cam and Groove Fitting | Type D | Coupler x 2" Female NPT | EPDM Seal | Nylon

Save $14.45

$36.13

$36.13 - $36.13

$36.13

$21.68

$21.68 - $21.68

$21.68

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Nylon - Type D - Coupler x Female FNPT

Specifications for Variant SKU: 5601337 NewAge
Shape (Orientation):	Straight
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	Nylon
Seal Material(s):	EPDM

Features:
High impact strength at much lighter weight than metal counterparts Corrosion resistant -- threads will not seize on mating threads Will not easily cross thread or seize on mating threads Electrically non-conductive Resistant to most hydrocarbons, solvents, mild acids, and agricultural chemicals. Made to MIL-C-27487 dimensions - fully interchangeable with other materials made to the same standards regardless of material Made in the USA Material: Glass-fiber reinforced nylon -- yellow in color Standard Gasket: EPDM Handle: 304L Stainless Steel Pin: 302 Stainless Steel Temperature Range: -30°F to 200°F Working Pressure: 1/4" thru 1": 175 psi 1-1/4" thru 2": 150 psi 3": 100 psi 4": 50 psi
Notes:
On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Thread Size)
5601197	1/2" Female FNPT
5601225	3/4" Female FNPT
5601253	1" Female FNPT
5601337	2" Female FNPT

* Limited stock item; lead times and minimums may apply -- contact support.
