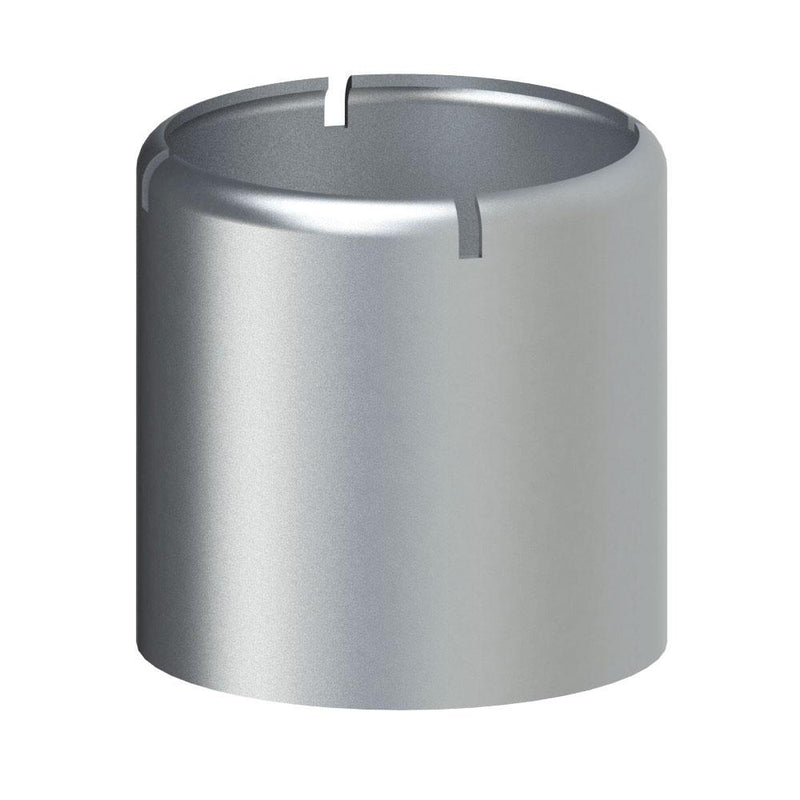

56040422 (40422C50AL) PROGRIP™ by PT-Coupling | Type C50AL | C50 External Crimp System | 4" Crimp Ferrule | 4.688" Ferrule ID | Aluminum

Save $7.84

$21.15

$21.15 - $21.15

$21.15

$13.31

$13.31 - $13.31

$13.31

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50AL | Crimp Ferrule | Aluminum

Made in the USA.

Specifications for Variant SKU: 56040422 PT-Coupling
Series:	ProGrip C50 External Crimp System
Shape (Orientation):	Straight
Material(s):	Aluminum

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA
For use with:
C50 External Crimp System.

Part Name	Item #	Size	Ferrule ID
20220C50AL	56020220	2"	2.625"
20226C50AL	56020226	2"	2.813"

30320C50AL	56030320	3"	3.625"
30328C50AL	56030328	3"	3.875"
30330C50AL	56030330	3"	3.938"

40422C50AL	56040422	4"	4.688"
40424C50AL	56040424	4"	4.750"
40428C50AL	56040428	4"	4.875"
40430C50AL	56040430	4"	4.938"

50530C50AL	56050530	5"	5.938"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
