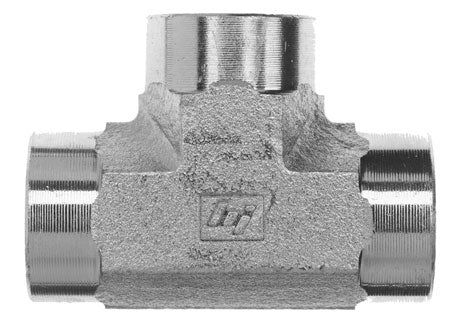

5605-04-04-04-SS by Brennan Inc. | -04 Female Pipe x -04 Female Pipe x -04 Female Pipe | Tee | Stainless Steel

5605-04-04-04-SS by Brennan Inc. | -04 Female Pipe x -04 Female Pipe x -04 Female Pipe | Tee | Stainless Steel

$41.63 - $41.63
$41.63
$52.81
$52.81 - $52.81
$52.81

Brennan Inc.
Tube Fittings & Adapters: 5605 - Female Pipe x Female Pipe x Female Pipe Tee
Specifications for Variant SKU: 5605-04-04-04-SS Brennan
Shape (Orientation): Tee
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Stainless Steel
Part Number Material A1 NPTF A2 NPTF A3 NPTF N1 Length N2 Length N3 Length Y Flats
5605-02-02-02-FG Steel 1/8-27" 1/8-27" 1/8-27" 0.660" 0.660" 0.660" 0.562"
5605-04-04-02-FG Steel 1/4-18" 1/4-18" 1/8-27" 0.880" 0.880" 0.880" 0.750"
5605-04-04-04-FG Steel 1/4-18" 1/4-18" 1/4-18" 0.880" 0.880" 0.880" 0.750"
5605-06-06-06-FG Steel 3/8-18" 3/8-18" 3/8-18" 1.020" 1.020" 1.020" 0.875"
5605-08-08-08-FG Steel 1/2-14" 1/2-14" 1/2-14" 1.230" 1.230" 1.230" 1.062"
5605-12-12-12-FG Steel 3/4-14" 3/4-14" 3/4-14" 1.360" 1.360" 1.360" 1.312"
5605-16-16-16-FG Steel 1-11-1/2" 1-11-1/2" 1-11-1/2" 1.620" 1.620" 1.620" 1.625"
5605-20-20-20-FG Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1-1/4-11-1/2" 1.700" 1.700" 1.700" 1.875"
5604-24-24-24-FG Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1-1/2-11-1/2" 2.080" 2.080" 2.080" 2.562"
5605-32-32-32-FG Steel 2-11-1/2" 2-11-1/2" 2-11-1/2" 2.390" 2.390" 2.390" 2.812"

5605-02-02-02-B Brass 1/8-27" 1/8-27" 1/8-27" 0.660" 0.660" 0.660" 0.562"
5605-04-04-04-B Brass 1/4-18" 1/4-18" 1/4-18" 0.880" 0.880" 0.880" 0.750"
5605-06-06-06-B Brass 3/8-18" 3/8-18" 3/8-18" 1.020" 1.020" 1.020" 0.875"
5605-08-08-08-B Brass 1/2-14" 1/2-14" 1/2-14" 1.230" 1.230" 1.230" 1.062"
5605-12-12-12-B Brass 3/4-14" 3/4-14" 3/4-14" 1.360" 1.360" 1.360" 1.312"

5605-02-02-02-SS Stainless Steel 1/8-27" 1/8-27" 1/8-27" 0.660" 0.660" 0.660" 0.562"
5605-04-04-04-SS Stainless Steel 1/4-18" 1/4-18" 1/4-18" 0.880" 0.880" 0.880" 0.750"
5605-06-06-06-SS Stainless Steel 3/8-18" 3/8-18" 3/8-18" 1.020" 1.020" 1.020" 0.875"
5605-08-08-08-SS Stainless Steel 1/2-14" 1/2-14" 1/2-14" 1.230" 1.230" 1.230" 1.062"
5605-12-12-12-SS Stainless Steel 3/4-14" 3/4-14" 3/4-14" 1.360" 1.360" 1.360" 1.312"
5605-16-16-16-SS Stainless Steel 1-11-1/2" 1-11-1/2" 1-11-1/2" 1.620" 1.620" 1.620" 1.625"
5605-20-20-20-SS Stainless Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1-1/4-11-1/2" 1.700" 1.700" 1.700" 1.875"
5604-24-24-24-SS Stainless Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1-1/2-11-1/2" 2.080" 2.080" 2.080" 2.562"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
