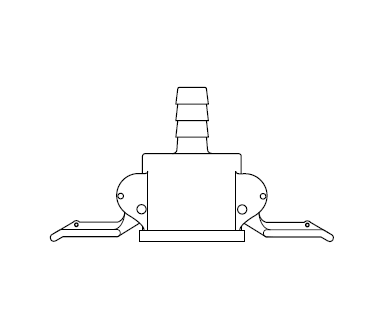

5610724 by NewAge | Cam and Groove Fitting | Type C | Coupler x 1/2" Hose Barb | EPDM Seal | Polypropylene

Save $0.47

$11.64

$11.64 - $11.64

$11.64

$11.17

$11.17 - $11.17

$11.17

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Polypropylene - Type C - Coupler x Hose Barb

Quantity

Specifications for Variant SKU: 5610724 NewAge
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female Cam & Groove, 1/2in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

Features:
Similar properties to nylon yet more resistant to most acids than nylon couplings Made to MIL-C-27487 dimensions Made in the USA Material: Glass-fiber reinforced nylon -- black in color Standard Gasket: EPDM Handle: 304L Stainless Steel Pin: 302 Stainless Steel Temperature Range: 10°F to 180°F Working Pressure: 3/8" thru 1": 125 psi 1-1/4" thru 2": 100 psi 3": 75 psi
Notes:
On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Hose ID)
5610724	1/2"
5610752	3/4"
5610780	1"
5610836	1-1/2"
5610864	2"
5610892	3"

* Limited stock item; lead times and minimums may apply -- contact support.
