5610780 by NewAge | Cam and Groove Fitting | Type C | Coupler x 1" Hose Barb | EPDM Seal | Polypropylene

Save $8.38

$20.95

$20.95 - $20.95

$20.95

$12.57

$12.57 - $12.57

$12.57

PRODUCT DESCRIPTION

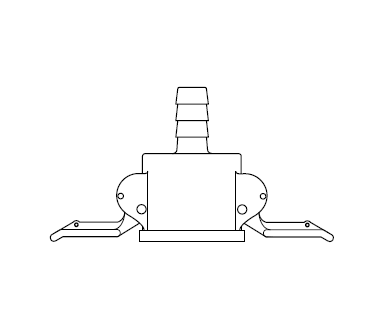

NewAge Industries - Plastic Cam & Groove Fittings - Polypropylene - Type C - Coupler x Hose Barb

Specifications for Variant SKU: 5610780 NewAge
Shape (Orientation):	Straight
Ends Configuration:	1in Female Cam & Groove, 1in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

Features:
Similar properties to nylon yet more resistant to most acids than nylon couplings Made to MIL-C-27487 dimensions Made in the USA Material: Glass-fiber reinforced nylon -- black in color Standard Gasket: EPDM Handle: 304L Stainless Steel Pin: 302 Stainless Steel Temperature Range: 10°F to 180°F Working Pressure: 3/8" thru 1": 125 psi 1-1/4" thru 2": 100 psi 3": 75 psi
Notes:
On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Hose ID)
5610724	1/2"
5610752	3/4"
5610780	1"
5610836	1-1/2"
5610864	2"
5610892	3"

* Limited stock item; lead times and minimums may apply -- contact support.
