56115-2-M5 AIGNEP | 55/56 Series | Mini Swivel 90° Elbow | 2mm Tube x M5 Male | Pack of 10

56115-2-M5 by AIGNEP | 55/56 Series | Mini Swivel | 2mm Tube x M5 Male | 90° Elbow | Pack of 10

Save $26.01

$65.02

$65.02 - $65.02

$65.02

$39.01

$39.01 - $39.01

$39.01

Package Quantity: 10 ea

Specifications for Variant SKU: 56115-2-M5 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male Composite Mini - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

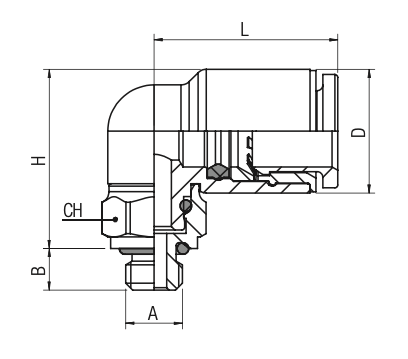

Product Number	Tube	A	B	L	CH	D	H
56115-2-M3	2 mm	M3	3 mm	11 mm	8 mm	6.5 mm	13 mm
56115-2-M5	2 mm	M5	4 mm	11 mm	8 mm	6.5 mm	12.5 mm
56115-3-M3	3 mm	M3	3 mm	11 mm	8 mm	6.5 mm	13 mm
56115-3-M5	3 mm	M5	4 mm	11 mm	8 mm	6.5 mm	12.5 mm
56115-4-M5	4 mm	M5	3.6 mm	14 mm	8 mm	8.5 mm	13.5 mm
56115-6-M5	6 mm	M5	3.6 mm	16 mm	8 mm	10.5 mm	15.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
