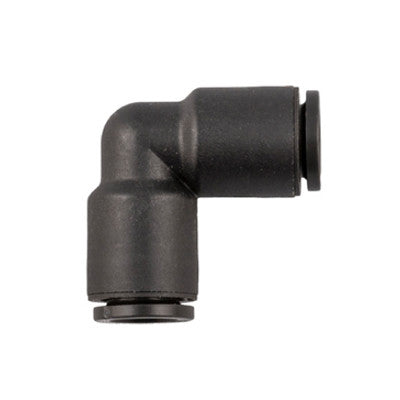

56130-2 AIGNEP | 55/56 Series | Mini Union 90° Elbow | 2mm | Pack of 10

56130-2 by AIGNEP | 55/56 Series | Mini Union | 2mm | 90° Elbow | Pack of 10

Save $25.52

$63.80

$63.80 - $63.80

$63.80

$38.28

$38.28 - $38.28

$38.28

Package Quantity: 10 ea

Specifications for Variant SKU: 56130-2 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Ends Configuration:	2mm Push-to-Connect, 2mm Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Union Elbow Composite Mini

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR

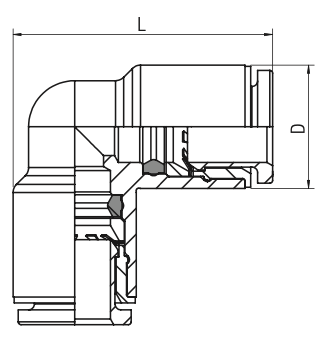

Product Number	Tube	L	D
56130-2	2 mm	14.5 mm	6.5 mm
56130-3	3 mm	14.5 mm	6.5 mm
56130-4	4 mm	19 mm	8.5 mm
56130-6	6 mm	22.5 mm	10.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
