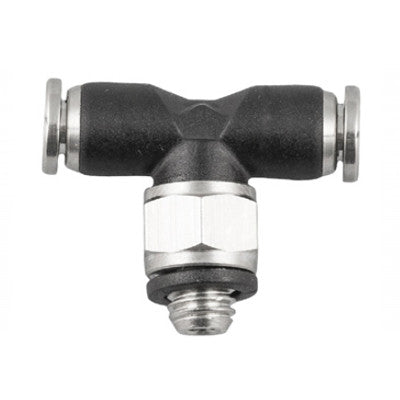

56215-3-M3 AIGNEP | 55/56 Series | Mini Swivel Branch Tee | 3mm Tube x M3 Male | Pack of 10

56215-3-M3 by AIGNEP | 55/56 Series | Mini Swivel Branch | 3mm Tube x M3 Male | Tee | Pack of 10

Save $36.67

$91.67

$91.67 - $91.67

$91.67

$55.00

$55.00 - $55.00

$55.00

Package Quantity: 10 ea

Specifications for Variant SKU: 56215-3-M3 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Branch Tee Composite Mini - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

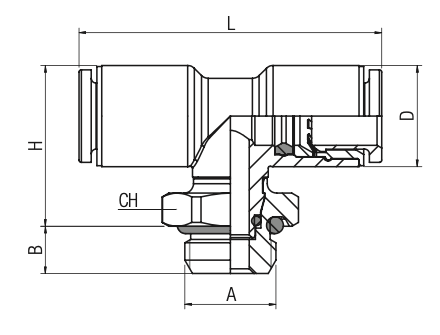

Product Number	Tube	A	H	B	L	CH	D
56215-2-M3	2 mm	M3	13 mm	3 mm	22 mm	8 mm	6.5 mm
56215-2-M5	2 mm	M5	12.5 mm	4 mm	22 mm	8 mm	6.5 mm
56215-3-M3	3 mm	M3	13 mm	3 mm	22 mm	8 mm	6.5 mm
56215-3-M5	3 mm	M5	12.5 mm	4 mm	22 mm	8 mm	6.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
