56225-2-M3 AIGNEP | 55/56 Series | Mini Composite Run Tee | 2mm Tube x M3 Male | Pack of 10
56225-2-M3 by AIGNEP | 55/56 Series | Mini Composite Run | 2mm Tube x M3 Male | Tee | Pack of 10
56225-2-M3 AIGNEP | 55/56 Series | Mini Composite Run Tee | 2mm Tube x M3 Male | Pack of 10

56225-2-M3 by AIGNEP | 55/56 Series | Mini Composite Run | 2mm Tube x M3 Male | Tee | Pack of 10

Save $36.67 Save $36.67
$91.67
$91.67 - $91.67
$91.67
$55.00
$55.00 - $55.00
$55.00

Package Quantity: 10 ea

Specifications for Variant SKU: 56225-2-M3 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Tee
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Run Tee Composite Mini - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

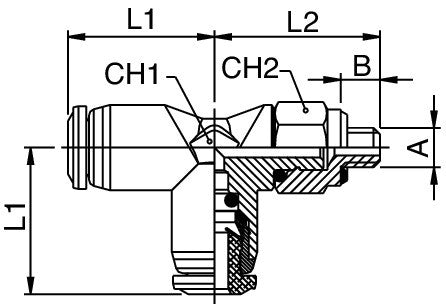

Product Number Tube A B L1 L2 CH1 CH2
56225-2-M3 2 mm M3 3 mm 11 mm 12.5 mm 6 mm 8 mm
56225-2-M5 2 mm M5 4 mm 11 mm 13.5 mm 6 mm 8 mm
56225-3-M3 3 mm M3 3 mm 11 mm 12.5 mm 6 mm 8 mm
56225-3-M5 3 mm M5 4 mm 11 mm 13.5 mm 6 mm 8 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
