56230-3 AIGNEP | 56 Series | Mini Composite Union Tee | 3mm | Pack of 10

56230-3 by AIGNEP | 56 Series | Mini Composite Union | 3mm | Tee | Pack of 10

Save $36.57

$91.42

$91.42 - $91.42

$91.42

$54.85

$54.85 - $54.85

$54.85

Package Quantity: 10 ea

Specifications for Variant SKU: 56230-3 AIGNEP \| 10 \|
Series:	56 Series
Shape (Orientation):	Tee
Ends Configuration:	3mm Push-to-Connect, 3mm Push-to-Connect, 3mm Push-to-Connect, Some Ends Match
Material(s):	Nylon

Union Tee Composite Mini

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

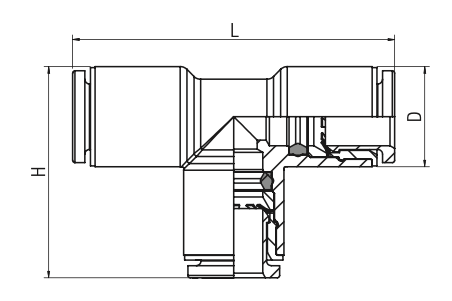

Product Number	Tube	H	L	D
56230-2	2 mm	14.5 mm	22 mm	6.5 mm
56230-3	3 mm	14.5 mm	22 mm	6.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
