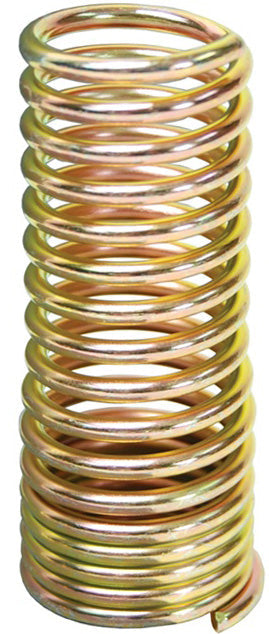

56RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Spring | 3/8" Hose Size | Brass Alloy 360

56RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Spring | 3/8" Hose Size | Brass Alloy 360

Save $0.91 Save $0.91
$2.28
$2.28 - $2.28
$2.28
$1.37
$1.37 - $1.37
$1.37

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Hose Spring

For use with SAEJ1402 air brake hose in making hose assemblies
Specifications for Variant SKU: 56RBSG-06 Dixon
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Length
56RBSG-06 3/8" 2.70"
56RBSG-08 1/2" 2.70"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
