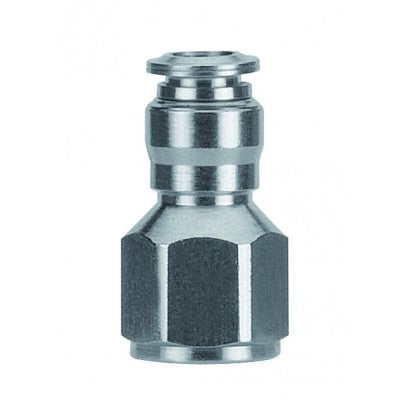

57030-6-1/4" AIGNEP | 57 Series | Straight Female Metal Release Collet | 6mm Tube x 1/4" BSPP Male | Pack of 10

57030-6-1/4 by AIGNEP | 57 Series | Female Metal Release Collet | 6mm Tube x 1/4" BSPP Male | Straight | Pack of 10

Save $10.89

$36.62

$36.62 - $36.62

$36.62

$25.73

$25.73 - $25.73

$25.73

Package Quantity: 10 ea

Specifications for Variant SKU: 57030-6-1/4 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	6mm Push-to-Connect, 1/4in Male BSPP
Material(s):	Nickel-Plated Brass

Straight Female Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Type: BSPP

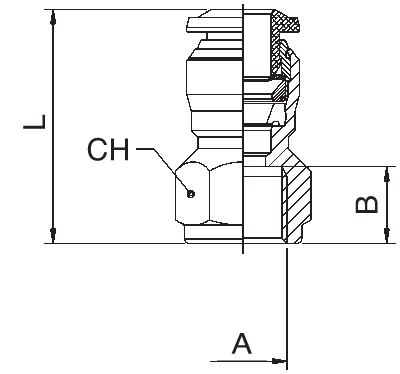

Product Number	Tube	A	Thread Type	B	L	CH
57030-4-M5	4 mm	M5	BSPP	5.5 mm	21 mm	11 mm
57030-4-1/8	4 mm	1/8"	BSPP	8.5 mm	24 mm	13 mm
57030-4-1/4	4 mm	1/4"	BSPP	11 mm	27.5 mm	16 mm
57030-5-1/8	5 mm	1/8"	BSPP	8.5 mm	26.5 mm	13 mm
57030-6-1/8	6 mm	1/8"	BSPP	8.5 mm	26 mm	13 mm
57030-6-1/4	6 mm	1/4"	BSPP	11 mm	29.5 mm	16 mm
57030-8-1/8	8 mm	1/8"	BSPP	8.5 mm	27 mm	15 mm
57030-8-1/4	8 mm	1/4"	BSPP	11 mm	29.5 mm	17 mm
57030-8-3/8	8 mm	3/8"	BSPP	12 mm	32 mm	19 mm
57030-10-1/4	10 mm	1/4"	BSPP	11 mm	32 mm	18 mm
57030-10-3/8	10 mm	3/8''	BSPP	12 mm	33.5 mm	19 mm
57030-10-1/2	10 mm	1/2"	BSPP	15 mm	39 mm	24 mm
57030-12-3/8	12 mm	3/8"	BSPP	12 mm	36 mm	21 mm
57030-12-1/2	12 mm	1/2"	BSPP	15 mm	41 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
