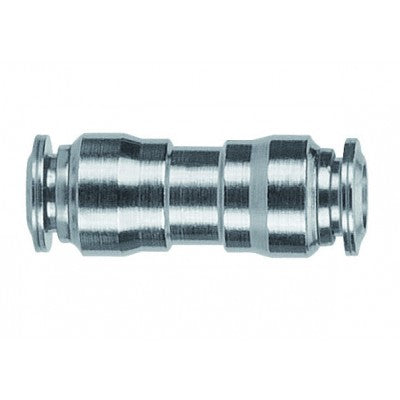

57040-14 AIGNEP | 57 Series | Union Metal Release Collet | 14mm Tube | Pack of 10

57040-14 by AIGNEP | 57 Series | Union Metal Release Collet | 14mm Tube | Pack of 10

Save $0.58

$57.63

$57.63 - $57.63

$57.63

$57.05

$57.05 - $57.05

$57.05

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57040-14 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	14mm Push-to-Connect, 14mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

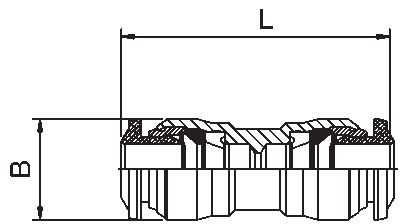

Product Number	Tube	B	L
57040-5	5 mm	11.5 mm	33 mm
57040-6	6 mm	12.5 mm	34 mm
57040-8	8 mm	14.5 mm	36 mm
57040-10	10 mm	17.5 mm	42 mm
57040-12	12 mm	20.5 mm	47 mm
57040-14	14 mm	21.5 mm	49 mm

Unequal Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

Product Number	Tube	B	L
57040-6-4	6 x 4 mm	12.5 mm	32 mm
57040-8-6	8 x 6 mm	14.5 mm	35 mm
57040-10-8	10 x 8 mm	17.5 mm	40.5 mm
57040-12-10	12 x 10 mm	20.5 mm	45.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
