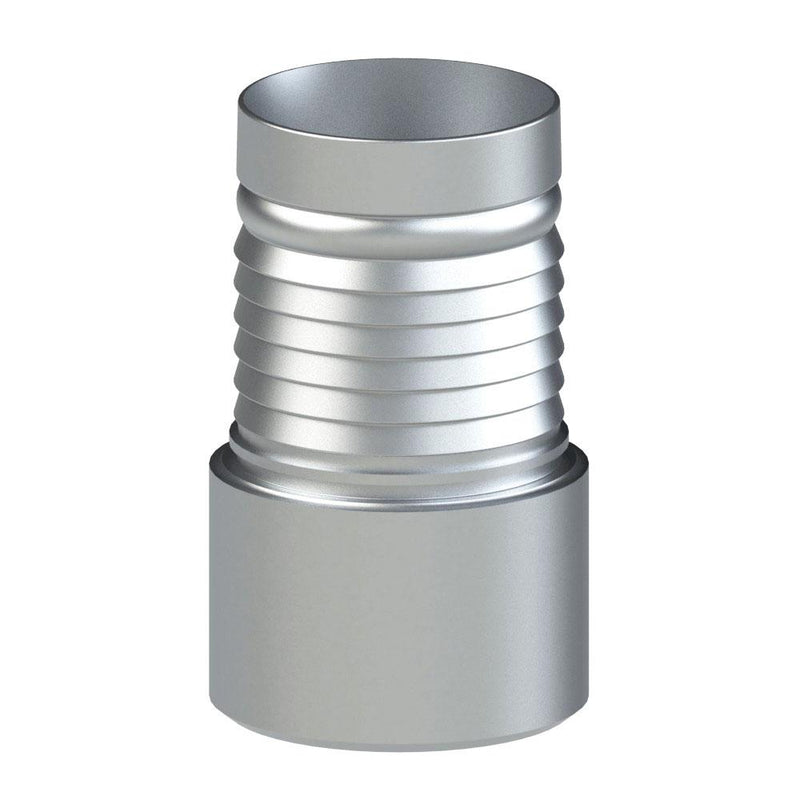

5704014 (40WC50CS) PROGRIP™ by PT-Coupling | Type WC50 | ProGrip C50 External Crimp Fitting | 4" Butt Weld Schedule 40 Pipe x 4" Hose Shank | Non-Plated Carbon Steel

5704014 (40WC50CS) PROGRIP™ by PT-Coupling | Type WC50 | ProGrip C50 External Crimp Fitting | 4" Butt Weld Schedule 40 Pipe x 4" Hose Shank | Non-Plated Carbon Steel

Save $44.25 Save $44.25
$119.22
$119.22 - $119.22
$119.22
$74.97
$74.97 - $74.97
$74.97

PT Coupling
PROGRIP™ | C50 External Crimp System | Type WC50 | Butt Weld Schedule 40 Pipe x Hose Shank | Non-Plated Carbon Steel

Made in the USA.
Specifications for Variant SKU: 5704014 PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in Hose Barb
Material(s): Non-Plated Carbon Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Made in the USA
Part
Name		 Item # Size Max. Allowable
Working Press.
(PSI)*
30WC50CS 5703014 3" 600 PSI
40WC50CS 5704014 4" 500 PSI

*The above pressure ratings are for the fitting itself. There are several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assembler and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
