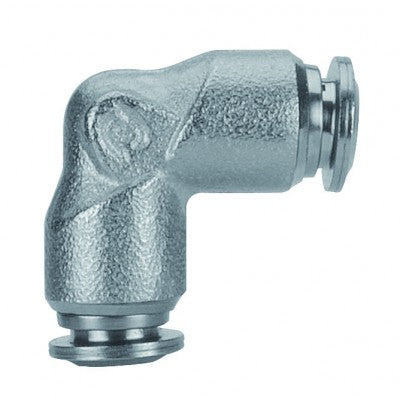

57130-6 AIGNEP | 57 Series | Union 90° Elbow Metal Release Collet | 6mm Tube | Pack of 10

57130-6 by AIGNEP | 57 Series | Union Metal Release Collet | 6mm Tube | 90° Elbow | Pack of 10

Save $12.68

$45.61

$45.61 - $45.61

$45.61

$32.93

$32.93 - $32.93

$32.93

Package Quantity: 10 ea

Specifications for Variant SKU: 57130-6 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	90 Degree
Ends Configuration:	6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number	Tube	L	CH	D
57130-5	5 mm	20 mm	11 mm	12.5 mm
57130-6	6 mm	21 mm	11 mm	12.5 mm
57130-10	10 mm	26.5 mm	16 mm	17 mm
57130-12	12 mm	30.5 mm	19 mm	21.5 mm
57130-14	14 mm	32.5 mm	19 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
