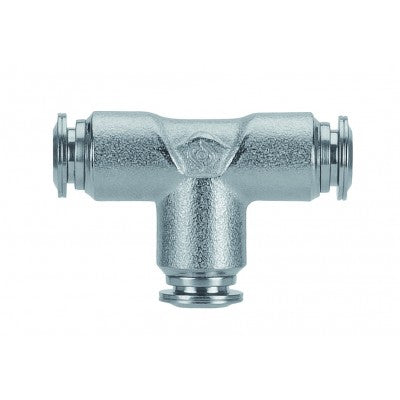

57230-14 AIGNEP | 57 Series | Union Tee Composite Metal Release Collet | 14mm Tube | Pack of 10

57230-14 by AIGNEP | 57 Series | Union Composite Metal Release Collet | 14mm Tube | Tee | Pack of 10

Save $22.08

$130.35

$130.35 - $130.35

$130.35

$108.27

$108.27 - $108.27

$108.27

Package Quantity: 10 ea

Specifications for Variant SKU: 57230-14 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Tee
Ends Configuration:	14mm Push-to-Connect, 14mm Push-to-Connect, 14mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

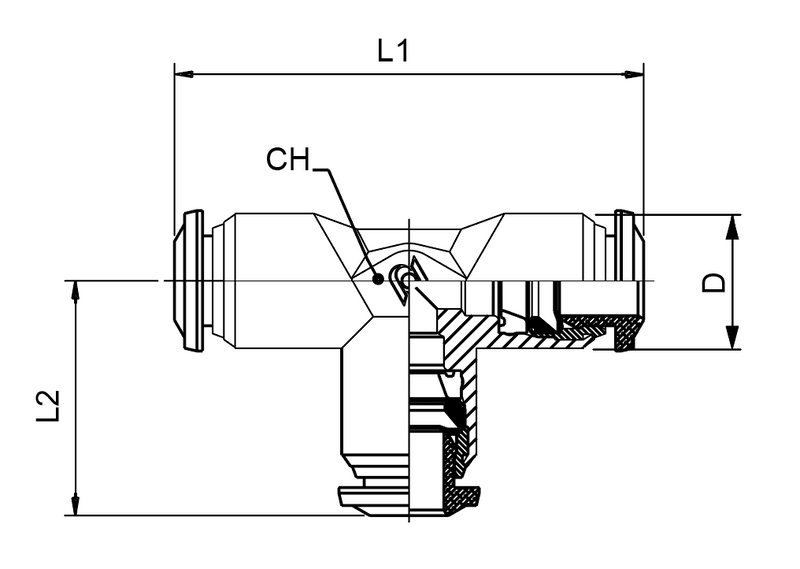

Product Number	Tube	L1	L2	CH	D
57230-5	5 mm	40 mm	20 mm	11 mm	12.5 mm
57230-6	6 mm	42 mm	21 mm	11 mm	12.5 mm
57230-10	10 mm	53 mm	26.5 mm	16 mm	17 mm
57230-12	12 mm	61 mm	30.5 mm	19 mm	21.5 mm
57230-14	14 mm	65.5 mm	32.5 mm	19 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
