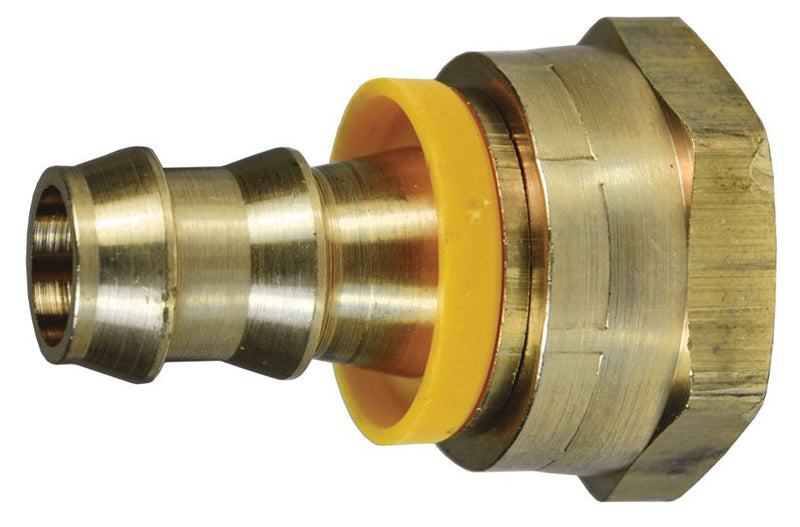

5741212C by Dixon Valve | Lok-On (Push-On) Female Swivel Garden Hose Fitting | 3/4" Female GHT x 3/4" Hose ID | Brass

5741212C by Dixon Valve | Lok-On (Push-On) Female Swivel Garden Hose Fitting | 3/4" Female GHT x 3/4" Hose ID | Brass

Save $7.31 Save $7.31
$18.35
$18.35 - $18.35
$18.35
$11.04
$11.04 - $11.04
$11.04

Dixon Valve
Lok-On (Push-On) Female Swivel Garden Hose Fitting | Female GHT x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 5741212C Dixon
Series: 574 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female GHT, 3/4in Push-On Hose Barb
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
  • Properly grips push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Material:
  • Brass
  • Yellow Plastic Cap
  • Washer included
Specifications:
  • Temperature Range: 34°F to 150°F
  • Pressure Rating: 150 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Part Number Previous Part Number Hose I.D. Female GHT Swivel Thread
5740812C 574-0812 1/2" 3/4"
5741012C 574-1012 5/8" 3/4"
5741212C 574-1212 3/4" 3/4"
