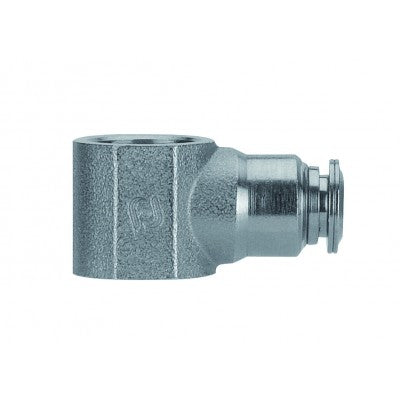

57500-6-1/4" AIGNEP | 57 Series | Single Banjo Body Metric | 6mm Tube x 1/4" Stem | Pack of 10

57500-6-1/4 by AIGNEP | 57 Series | Single Banjo Body Metric | 6mm Tube x 1/4" Stem | Pack of 10

Save $18.76

$48.89

$48.89 - $48.89

$48.89

$30.13

$30.13 - $30.13

$30.13

Package Quantity: 10 ea

Specifications for Variant SKU: 57500-6-1/4 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass

Single Banjo Body Metallic Metric

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

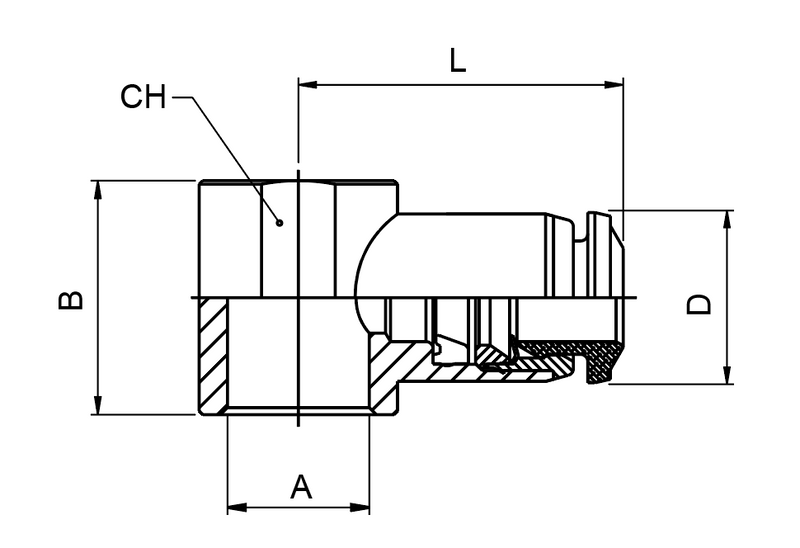

Product Number	Tube	A	B (IN)	B	L	CH	D
57500-4-M6	4 mm	M6	0.492"	12.5 mm	19 mm	-	10 mm
57500-4-1/8	4 mm	1/8"	0.590"	15 mm	21 mm	14 mm	10 mm
57500-5-M6	5 mm	M6	0.492"	12.5 mm	20 mm	-	12.5 mm
57500-5-1/8	5 mm	1/8"	0.590"	15 mm	21.5 mm	14 mm	12.5 mm
57500-5-1/4	5 mm	1/4"	0.669"	17 mm	24.5 mm	18 mm	12.5 mm
57500-6-M5	6 mm	M5	0.492"	12.5 mm	20.5 mm	-	12.5 mm
57500-6-M6	6 mm	M6	0.492"	12.5 mm	20.5 mm	-	12.5 mm
57500-6-1/8	6 mm	1/8"	0.590"	15 mm	22 mm	14 mm	12.5 mm
57500-6-1/4	6 mm	1/4"	0.669"	17 mm	25 mm	18 mm	12.5 mm
57500-8-1/8	8 mm	1/8"	0.590"	15 mm	24 mm	14 mm	14 mm
57500-8-1/4	8 mm	1/4"	0.669"	17 mm	26 mm	18 mm	14 mm
57500-8-3/8	8 mm	3/8"	0.787"	20 mm	28 mm	21 mm	14 mm
57500-10-1/4	10 mm	1/4"	0.669"	17 mm	29 mm	18 mm	17 mm
57500-10-3/8	10 mm	3/8"	0.787"	20 mm	30.5 mm	21 mm	17 mm
57500-12-3/8	12 mm	3/8"	0.787"	20 mm	32.5 mm	21 mm	21.5 mm
57500-12-1/2	12 mm	1/2"	0.944"	24 mm	35 mm	25 mm	21.5 mm
57500-14-1/2	14 mm	1/2"	0.944"	24 mm	35.5 mm	25 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
