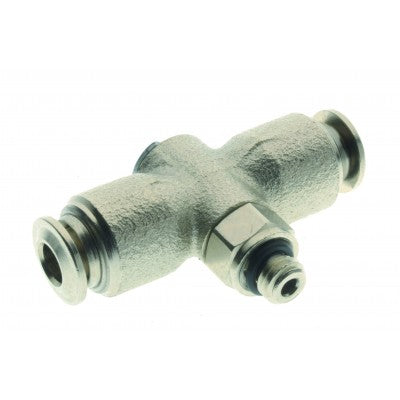

57560-5-1/4" AIGNEP | Banjo Series | Double Banjo Body Nickle Plated Brass | 5mm x 1/4" BSPP | Pack of 10

57560-5-1/4 by AIGNEP | Banjo Series | Double Banjo Body | 5mm x 1/4" BSPP | Nickel Plated Brass | Pack of 10

Save $0.71

$70.08

$70.08 - $70.08

$70.08

$69.37

$69.37 - $69.37

$69.37

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57560-5-1/4 AIGNEP \| 10 \|
Series:	Banjo Series
Shape (Orientation):	Tee
Ends Configuration:	5mm Push-to-Connect, 1/4in Male BSPP, 5mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Double Banjo Body Nickel Plated Brass

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

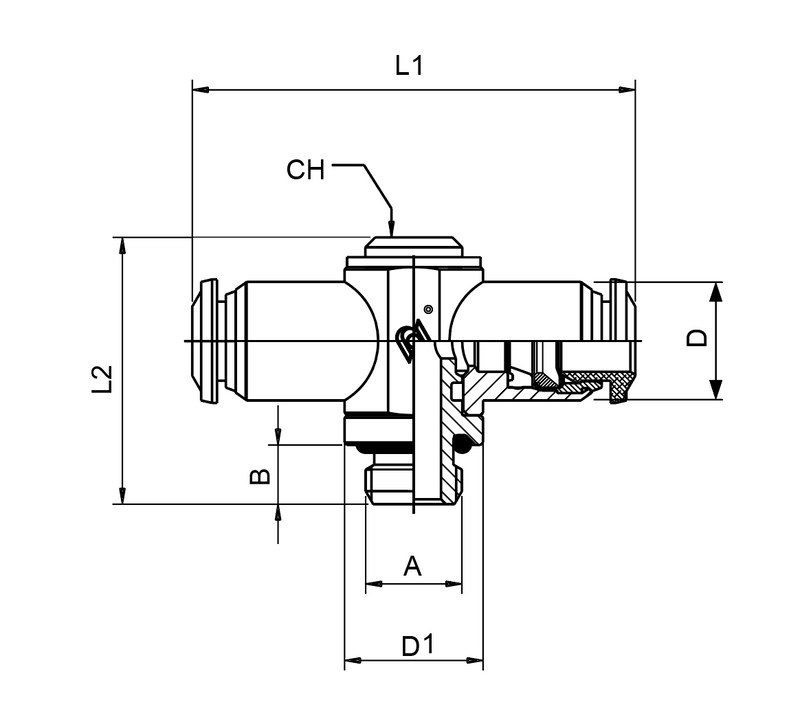

Tube	A	B	L1	L2	CH	D1	D
57560-4-1/8	4 mm	1/8"	6 mm	42 mm	27 mm	10 mm	14 mm	5 mm
57560-5-1/8	5 mm	1/8"	6 mm	43 mm	27 mm	12.5 mm	14 mm	5 mm
57560-5-1/4	5 mm	1/4"	8 mm	49 mm	31 mm	12.5 mm	18 mm	6 mm
57560-6-1/8	6 mm	1/8"	6 mm	45 mm	27 mm	12.5 mm	14 mm	5 mm
57560-6-1/4	6 mm	1/4"	8 mm	50 mm	31 mm	12.5 mm	18 mm	6 mm
57560-8-1/8	8 mm	1/8"	6 mm	48 mm	27 mm	14 mm	14 mm	5 mm
57560-8-1/4	8 mm	1/4"	8 mm	52 mm	31 mm	14 mm	18 mm	6 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
