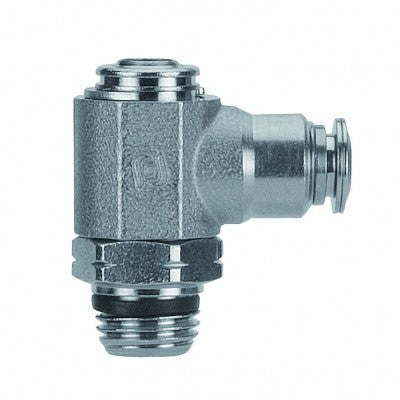

57920-4-1/8" AIGNEP | Functional (Flow Controls) Series | Needle Valve | 4mm Tube x 1/8" Swift-Fit Male | Metal Release Collet | Flow In Screw Adjustment

57920-4-1/8 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 4mm Tube x 1/8" Swift-Fit Male | Metal Release Collet | Flow In Screw Adjustment

Save $7.15

$18.91

$18.91 - $18.91

$18.91

$11.76

$11.76 - $11.76

$11.76

Specifications for Variant SKU: 57920-4-1/8 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	4mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Metric Tube Needle Valve

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B	D	L1	L2	CH
57920-4-M5	4 mm	M5	4 mm	10 mm	19 mm	29.5 mm	8 mm
57920-4-1/8	4 mm	1/8"	5.5 mm	10 mm	21 mm	31 mm	14 mm
57920-5-M5	5 mm	M5	4 mm	12.5 mm	20 mm	29.5 mm	8 mm
57920-5-1/8	5 mm	1/8"	5.5 mm	12.5 mm	21.5 mm	31 mm	14 mm
57920-5-1/4	5 mm	1/4"	7 mm	12.5 mm	24.5 mm	36.5 mm	17 mm
57920-6-M5	6 mm	M5	4 mm	12.5 mm	20.5 mm	29.5 mm	8 mm
57920-6-1/8	6 mm	1/8"	5.5 mm	12.5 mm	22.5 mm	31 mm	14 mm
57920-6-1/4	6 mm	1/4"	7 mm	12.5 mm	25 mm	36.5 mm	17 mm
57920-8-1/8	8 mm	1/8"	5.5 mm	14 mm	24 mm	31 mm	14 mm
57920-8-1/4	8 mm	1/4"	7 mm	14 mm	26 mm	36.5 mm	17 mm
57920-8-3/8	8 mm	3/8"	7.5 mm	14 mm	28.5 mm	42.5 mm	20 mm
57920-10-1/4	10 mm	1/4"	7 mm	17 mm	28.5 mm	36.5 mm	17 mm
57920-10-3/8	10 mm	3/8"	7.5 mm	17 mm	30.5 mm	42.5 mm	20 mm
57920-12-3/8	12 mm	3/8"	7.5 mm	21.5 mm	32.5 mm	42.5 mm	20 mm
57920-12-1/2	12 mm	1/2"	9 mm	21.5 mm	35 mm	47 mm	24 mm
57920-14-1/2	14 mm	1/2"	9 mm	21.5 mm	35.5 mm	47 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
