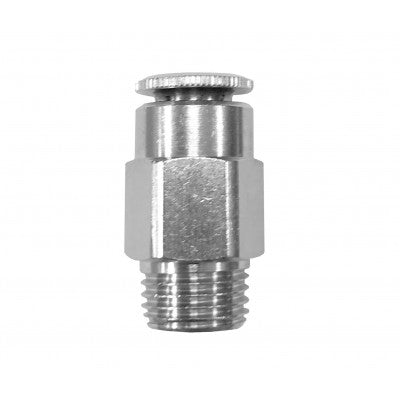

58000-6-M10x1 AIGNEP | 58 Series | Straight Male Adapter Taper | Grease Fitting | 6mm Tube x Male M10x1 (HP) | Pack of 10

58000-6-M10x1 by AIGNEP | 58 Series | Male Adapter Taper | Grease Fitting | 6mm Tube x Male M10x1 (HP) | Straight | Pack of 10

Save $0.16

$16.59

$16.59 - $16.59

$16.59

$16.43

$16.43 - $16.43

$16.43

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 58000-6-M10x1 AIGNEP \| 10 \|
Series:	58 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	HNBR

Straight Male - Grease Fitting

Pressure Rating: 0-435 PSI for air (0-2175 PSI for fluids)
Temperature Range: -22 ° F - 302 ° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Water, Oil, Grease
Body: Nickel Plated Brass
Thread Seal: HNBR

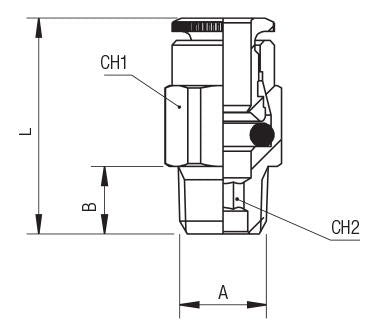

Tube	A	B	L	CH1	CH2
58000-4-M6x1	4 mm	M6 x 1	6 mm	22 mm	10 mm	2.5 mm
58000-4-M8x1	4 mm	M8 x 1	6 mm	20 mm	10 mm	3 mm
58000-4-M10x1	4 mm	M10 x 1	6.5 mm	20 mm	10 mm	3 mm
58000-4-1/8	4 mm	1/8"	7.5 mm	21 mm	10 mm	3 mm
58000-6-M6x1	6 mm	M6 x 1	6 mm	24.5 mm	12 mm	2.5 mm
58000-6-M8x1	6 mm	M8 x 1	6 mm	24.5 mm	12 mm	3 mm
58000-6-M10x1	6 mm	M10 x 1	6.5 mm	21.5 mm	12 mm	3 mm
58000-6-1/8	6 mm	1/8"	7.5 mm	23 mm	12 mm	3 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
