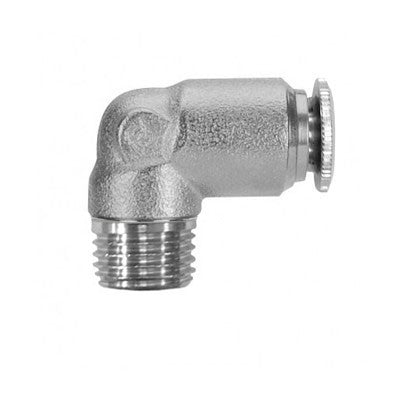

58100-6-M10x1 AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 6 mm Tube x Male M10x1 | Pack of 10

58100-6-M10x1 by AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 6 mm Tube x Male M10x1 | 90° Elbow | Pack of 10

Save $0.25

$23.86

$23.86 - $23.86

$23.86

$23.61

$23.61 - $23.61

$23.61

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 58100-6-M10x1 AIGNEP \| 10 \|
Series:	58 Series
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass
Seal Material(s):	HNBR

Fixed Elbow - Grease Fitting

Pressure Rating: 0-435 PSI for air (0-2175 PSI for fluids)
Temperature Range: -22 ° F - 302 ° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Water, Oil, Grease
Body: Nickel Plated Brass
Thread Seal: HNBR

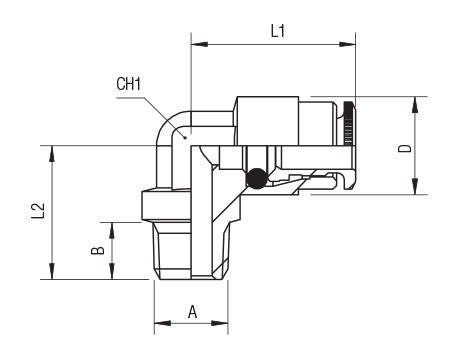

Tube	A	B	L1	L2	CH1	D
58100-4-M6x1	4 mm	M6 x 1	6 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-M8x1	4 mm	M8 x 1	6 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-M10x1	4 mm	M10 x 1	6.5 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-1/8	4 mm	1/8"	7.5 mm	18 mm	15 mm	8 mm	10.5 mm
58100-6-M6x1	6 mm	M6 x 1	6 mm	21 mm	17 mm	10 mm	13 mm
58100-6-M8x1	6 mm	M8 x 1	6 mm	21 mm	17 mm	10 mm	13 mm
58100-6-M10x1	6 mm	M10 x 1	6.5 mm	21 mm	17 mm	10 mm	13 mm
58100-6-1/8	6 mm	1/8"	7.5 mm	21 mm	17.5 mm	10 mm	13 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
