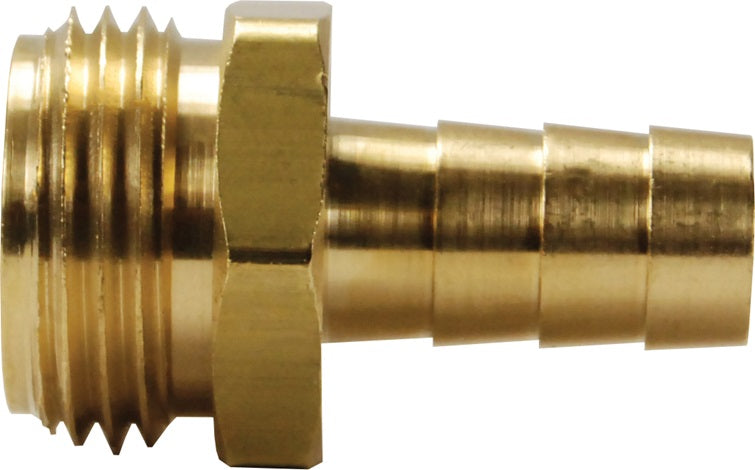

5851012C by Dixon Valve | Short Shank Fitting | Male Coupling | with Hex | 3/4" Male GHT x 5/8" Hose ID | 1" Shank Length | Brass

Save $4.15

$8.15

$8.15 - $8.15

$8.15

$4.00

$4.00 - $4.00

$4.00

Dixon Valve
Short Shank Fitting | Male Coupling | with Hex

Specifications for Variant SKU: 5851012C Dixon
Series:	585 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male GHT, 5/8in Hose Barb
Material(s):	Brass
Compatible with the following Series:	GS Black Multipurpose Air and Water Hose \| GS Red Multipurpose Air and Water Hose

Features:
Extended male GHT - deeper thread. Female couplings include 5911212W SBR washer.
Materials:
Brass.

Male Fitting with Hex Nut

Part Number	Previous Part Number	End Type	Shank Length
5850812C	BGHM74	3/4" Male GHT x 1/2" Hose ID	1"
5851012C	BGHM75	3/4" Male GHT x 5/8" Hose ID	1"
5851212C	BGHM76	3/4" Male GHT x 3/4" Hose ID	1"

Female Swivel Fitting with Hex Nut

Part Number	Previous Part Number	End Type	Shank Length
5880812C	HNBGHF74	3/4" Female GHT x 1/2" Hose ID	1"
5881012C	HNBGHF75	3/4" Female GHT x 5/8" Hose ID	1"
5881212C	HNBGHF76	3/4" Female GHT x 3/4" Hose ID	1"

Complete Coupling

Part Number	Previous Part Number	Hose ID	Threads
5890808K	HNBGH74	1/2"	3/4" Male GHT x 3/4" Female GHT
5891010K	HNBGH75	5/8"	3/4" Male GHT x 3/4" Female GHT
5891212K	HNBGH76	3/4"	3/4" Male GHT x 3/4" Female GHT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
