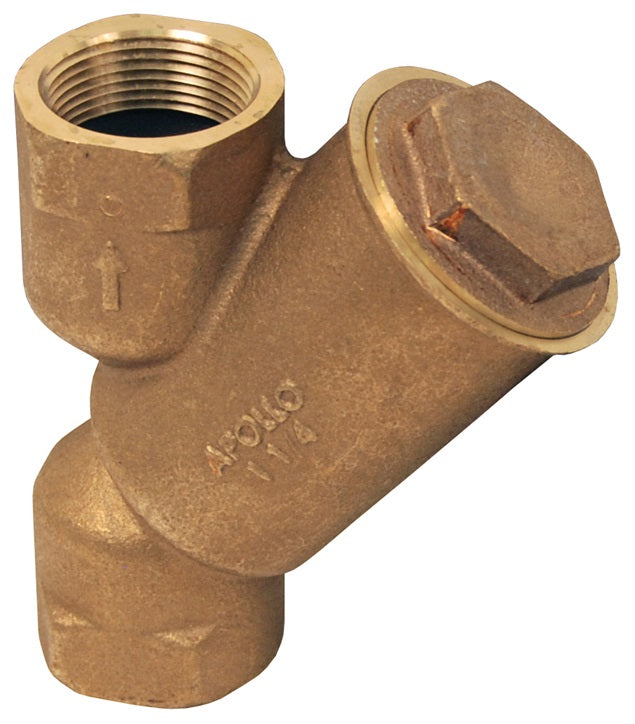

59-004 by Dixon Valve | Y Line Strainer | 20 x 20 Mesh Screen | 3/4" Female NPT x 3/4" Female NPT | Cast Bronze

Name: 59-004 by Dixon Valve | Y Line Strainer | 20 x 20 Mesh Screen | 3/4" Female NPT x 3/4" Female NPT | Cast Bronze
Brand: Dixon
SKU: 59-004 Dixon
Price: 97.73 USD
Availability: InStock

Save $6.81

$104.54

$104.54 - $104.54

$104.54

$97.73

$97.73 - $97.73

$97.73

Dixon Valve
Y Line Strainer | Cast Bronze

Quantity

Specifications for Variant SKU: 59-004 Dixon
Shape (Orientation):	Y
Ends Configuration:	\3/4\ Female NPT, 3/4\ Female NPT, Some Ends Match\
Material(s):	Bronze

Material:
Body: Cast Bronze 304 Stainless Steel Screen
Specification:
Working pressure: 400 PSI WOG, 125 PSI steam

Cast Bronze Part Number	304 Stainless Replacement Screen Part Number	Female NPT	Screen Mesh
59-001	G3271-00	1/4"	50 x 50 Mesh
59-002	G2457-00	3/8"	50 x 50 Mesh
59-003	G2457-00	1/2"	50 x 50 Mesh
59-004	G3224-00	3/4"	20 x 20 Mesh
59-005	G3225-00	1"	20 x 20 Mesh
59-006	G3231-00	1-1/4"	20 x 20 Mesh
59-007	G3229-00	1-1/2"	20 x 20 Mesh
59-008	G3230-00	2"	20 x 20 Mesh

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
