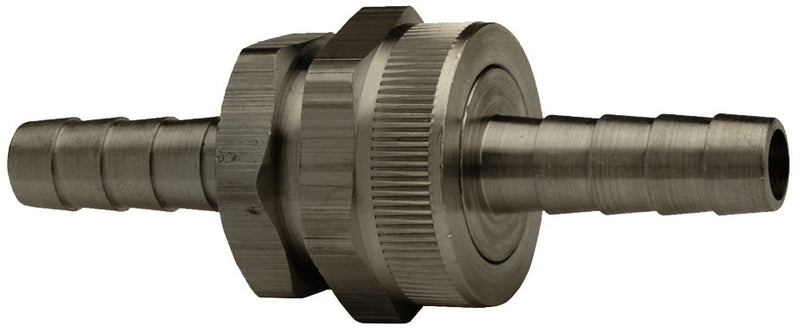

5921010KSS by Dixon Valve | Standard Shank Fitting | with Hex Nut | Complete Set | 5/8" Hose ID | 3/4" Female GHT x 3/4" Male GHT | 303 Stainless Steel

Save $41.30

$103.25

$103.25 - $103.25

$103.25

$61.95

$61.95 - $61.95

$61.95

Dixon Valve
Standard Shank Fitting with Hex Nut | Complete Set

Specifications for Variant SKU: 5921010KSS Dixon
Series:	592 Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 3/4in Female GHT, 3/4in Male GHT
Material(s):	303 Stainless Steel
Seal Material(s):	SBR

Features:
Extended male GHT - deeper thread. Washer included, part #5911212W.
Materials:
Note: For Fittings that are Lead Free Brass: NSF ®/ANSI 61 certified lead-free brass <=0.25% lead, Alloy C2745 and NSF ®/ANSI 61 certified. Washer included: 5911212WEPDM

Brass		Lead-Free Brass**	303 Stainless Steel		Hose Size	Threads
Part Number	Previous Part Number	Part Number	Part Number	Previous Part Number	Hose Size	Threads
5920606K	BC73	-	-	-	3/8"	3/4" Female GHT x 3/4" Male GHT
5920808K	BC74	5920808KLF	5920808KSS	SSC74	1/2"	3/4" Female GHT x 3/4" Male GHT
5921010K	BC75	5921010KLF	5921010KSS	SSC75	5/8"	3/4" Female GHT x 3/4" Male GHT
5921212K	BC76	5921212KLF	5921212KSS	SSC76	3/4"	3/4" Female GHT x 3/4" Male GHT
5921612K	BC78	-	-	-	1"	3/4" Female GHT x 3/4" Male GHT
5921616K	BS808	-	-	-	1"	1" Female NPSH x 1" Male NPSH
