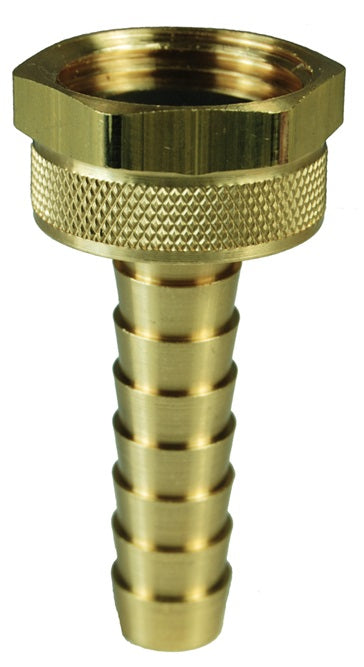

5941212C by Dixon Valve | Long Shank Fitting | Female Coupling | 3/4" Female GHT x 3/4" Hose ID | Brass

Name: 5941212C by Dixon Valve | Long Shank Fitting | Female Coupling | 3/4" Female GHT x 3/4" Hose ID | Brass
Brand: Dixon
SKU: 5941212C Dixon
Price: 5.03 USD
Availability: InStock

Save $0.63

$5.66

$5.66 - $5.66

$5.66

$5.03

$5.03 - $5.03

$5.03

Dixon Valve
Long Shank Fitting | Female Coupling

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5941212C Dixon
Series:	594 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female GHT
Material(s):	Brass
Seal Material(s):	Rubber

Features:
Extended male GHT - deeper thread. Brass Female couplings include 5911212W SBR washer. Plated Steel female couplings include KRW5 washer.
Materials:
For Lead-Free Brass Fittings ONLY: NSF ®/ANSI 61 certified lead-free brass <=0.25% lead, Alloy C2745 and NSF ®/ANSI 61 certified 5911212WEPDM washer included with female coupling.

Complete Coupling

Brass		Plated Steel	Hose I.D.	Threads
Part Number	Previous Part Number	Plated Steel	Hose I.D.	Threads
-	-	SLS307	3/8"	3/4" Male GHT x 3/4" Female GHT
5950808K	BLS407	SLS407	1/2"	3/4" Male GHT x 3/4" Female GHT
5951010K	BLS507	SLS507	5/8"	3/4" Male GHT x 3/4" Female GHT
5951212K	BLS607	SLS607	3/4"	3/4" Male GHT x 3/4" Female GHT

Female Fitting

Brass		Plated Steel	Lead-Free Brass Part Number	Hose I.D.	Threads
Part Number	Previous Part Number	Plated Steel	Lead-Free Brass Part Number	Hose I.D.	Threads
-	-	SLS347	-	3/8"	3/4" Female GHT
5940812C	BLS447	SLS447	-	1/2"	3/4" Female GHT
5941012C	BLS547	SLS547	-	5/8"	3/4" Female GHT
5941212C	BLS647	SLS647	5941212CLF	3/4"	3/4" Female GHT

Male Fitting

Brass		Plated Steel	Lead-Free Brass Part Number	Hose I.D.	Threads
Part Number	Previous Part Number	Plated Steel	Lead-Free Brass Part Number	Hose I.D.	Threads
-	-	SLS317	-	3/8"	3/4" Male GHT
5930812C	BLS417	SLS417	-	1/2"	3/4" Male GHT
5931012C	BLS517	SLS517	-	5/8"	3/4" Male GHT
5931212C	BLS617	SLS617	5931212CLF	3/4"	3/4" Male GHT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
