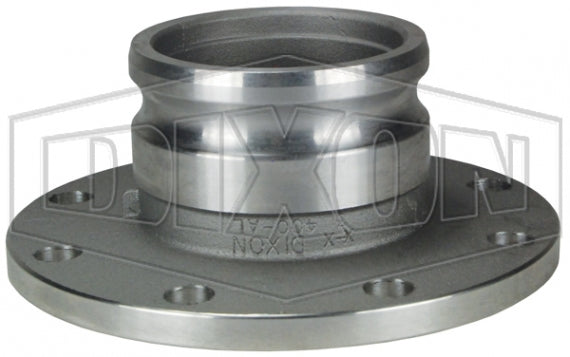

600-AL-AL by Dixon Valve | Cam & Groove Flange Adapter | 6" Adapter x 150# Flange | 5/8" Flange Thickness | Aluminum

600-AL-AL by Dixon Valve | Cam & Groove Flange Adapter | 6" Adapter x 150# Flange | 5/8" Flange Thickness | Aluminum

Save $16.36 Save $16.36
$204.48
$204.48 - $204.48
$204.48
$188.12
$188.12 - $188.12
$188.12

Dixon Valve
Cam & Groove Flange Adapter | Adapter x 150# Flange

Designed for use with liquids.
Specifications for Variant SKU: 600-AL-AL Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Male Cam & Groove, 6in 150# Flange
Material(s): Aluminum
Features:
  • Aluminum and unplated iron flanges are flat face.
  • Stainless steel flanges are raised face.
  • Reference dixonvalve.com for flange bolt hole drilling circle standards.
  • Flanges are designed to mate with 150# flanges.
  • Flanges have the same bolt hole pattern as an ANSI 150 lb. flange, the thickness may vary.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Part Number Material Size Flange Thickness Max. Operating Pressure
200-AL-AL 356T6 Aluminum 2" 3/4" 250 PSI
300-AL-AL 356T6 Aluminum 3" 5/8" 125 PSI
400-AL-AL 356T6 Aluminum 4" 5/8" 100 PSI
600-AL-AL 356T6 Aluminum 6" 5/8" 75 PSI
800-AL-AL* 356T6 Aluminum 8" 1-1/8" 50 PSI

300-AL-MI Unplated Malleable Iron 3" 5/8" 125 PSI

100-AL-SS 316 Stainless Steel 1" 9/16" 250 PSI
150-AL-SS 316 Stainless Steel 1-1/2" 11/16" 250 PSI
200-AL-SS 316 Stainless Steel 2" 7/16" 250 PSI
300-AL-SS 316 Stainless Steel 3" 7/16" 125 PSI
400-AL-SS 316 Stainless Steel 4" 7/16" 100 PSI
600-AL-SS 316 Stainless Steel 6" 5/8" 75 PSI

* Part is produced as a welded fabrication.
