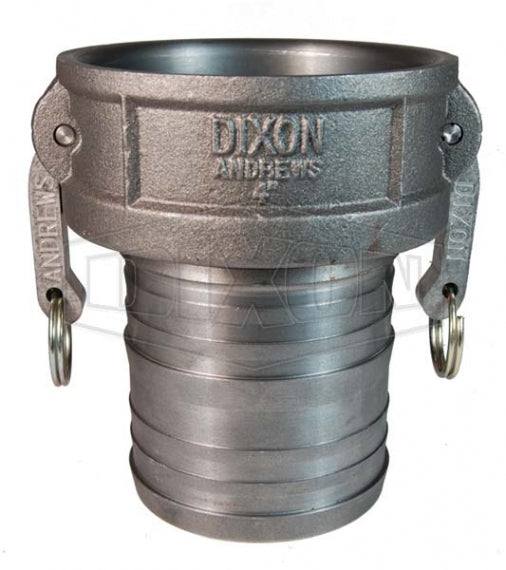

600-C-MI by Dixon Valve | Cam & Groove Coupler | Type C | 6" Coupler x 6" Hose Shank | Unplated Ductile Iron

Name: 600-C-MI by Dixon Valve | Cam & Groove Coupler | Type C | 6" Coupler x 6" Hose Shank | Unplated Ductile Iron
Brand: Dixon
SKU: 600-C-MI Dixon
Price: 229.32 USD
Availability: InStock

Save $21.15

$250.47

$250.47 - $250.47

$250.47

$229.32

$229.32 - $229.32

$229.32

Dixon Valve
Cam & Groove Coupler | Type B | Coupler x Hose Shank

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 600-C-MI Dixon
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	6in Female Cam & Groove, 6in Hose Barb
Material(s):	Unplated Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Precision machined to rigid tolerances. Stainless pins will not rust or bind, providing great strength and safety. Recess holds gasket firmly in place - ensures proper placement. Long shank design allows proper banding, thus eliminating the major cause of hose damage.
Construction:
Nitrile Rubber gasket. Durable stainless steel cam arm pins. Supplied with safety clips.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
Finger rings are not supplied. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Dixon and Boss-Lock cam and groove couplings do not interchange in the 1/2" size. No standard exists for the 1/2" fittings, and generally does not interchange with other manufacturers. Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size the 8" Dixon design has 4 cam arms. Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturers' products with Dixon products.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Aluminum Hard Coat Part Number	Brass Part Number	Unplated Ductile Iron Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
50-C-AL	-	50-C-BR	-	50-C-SS	1/2"	150 PSI
75-C-AL	-	75-C-BR	-	75-C-SS	3/4"	250 PSI
100-C-AL		100-C-BR	-	100-C-SS	1"	250 PSI
125-C-AL	-	125-C-BR	-	125-C-SS	1-1/4"	250 PSI
150-C-AL	150-C-ALH	150-C-BR	150-C-MI*	150-C-SS	1-1/2"	250 PSI
200-C-AL	200-C-ALH	200-C-BR	200-C-MI**	200-C-SS	2"	250 PSI
250-C-AL	-	250-C-BR	-	250-C-SS	2-1/2"	150 PSI
300-C-AL	300-C-ALH	300-C-BR	-	300-C-SS	3"	125 PSI 150 PSI with King Crimp Ferrule system
400-C-AL	400-C-ALH	400-C-BR	400-C-MI**	400-C-SS	4"	100 PSI 150 PSI with King Crimp Ferrule system
500-C-AL	-	-	-	500-C-SS	5"	75 PSI
600-C-AL	600-C-ALH	600-C-BR	600-C-MI**	600-C-SS	6"	75 PSI
800-C-AL	-	-	-	-	8"	50 PSI

* Malleable Iron

** Suitable for use with King Crimp® sleeves and ferrules

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
