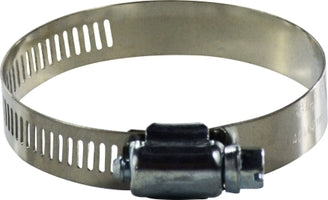

600028 (600-028) Midland Metal Hose Miniature Worm Gear Clamp - 600 Series - 1/2" Width - ID Range: 1-5/16" to 2-1/4" - 201 Stainless Steel Band / Carbon Steel Screw

600028 by Midland | Metal Hose Miniature Worm Gear Clamp | 600 Series | 1/2" Width | ID Range: 1-5/16" to 2-1/4" | 201 Stainless Steel Band / Carbon Steel Screw

Save $0.25 Save $0.25
$2.21
$2.21 - $2.21
$2.21
$1.96
$1.96 - $1.96
$1.96

Midland Industries
Metal Hose Miniature Worm Gear Clamp - 600 Series

A general purpose clamp for automobiles, plumbing, home and garden general clamping applications, with anticorrosive properties varying with the number of components made from stainless steel.

Inventory @ Manufacturers Warehouse: 1229 Units
Specifications for Variant SKU: 600028 Midland
Material(s): 201 Stainless Steel, Carbon Steel
Clamp Width: 0.5
Minimum Clamp I.D.: 1.3125
Maximum Clamp I.D.: 2.25
Features:
  • 5/16" Hex Slotted Carbon Steel Screw
  • 1/2" Wide 201 Stainless Steel Band
  • Carbon Steel Housing
  • No PSI Rating
  • 50lb/ Inch Torque Rating Die Set Function
Part Number # Diameter Range:
Min. Max.
600006
(600-006)		 6 3/8" 7/8"
600008
(600-008)		 8 7/16" 1"
600010
(600-010)		 10 9/16" 1-1/16"
600012
(600-012)		 12 9/16" 1-1/4"
600016
(600-016)		 16 11/16" 1-1/2"
600020
(600-020)		 20 3/4" 1-3/4"
600024
(600-024)		 24 1-1/16" 2"
600028
(600-028)		 28 1-5/16" 2-1/4"
600032
(600-032)		 32 1-9/16" 2-1/2"
600036
(600-036)		 36 1-13/16" 2-3/4"
600040
(600-040)		 40 2-1/16" 3"
600044
(600-044)		 44 2-5/16" 3-1/4"
600048
(600-048)		 48 2-9/16" 3-1/2"
600052
(600-052)		 52 2-13/16" 3-3/4"
600056
(600-056)		 56 3-1/16" 4"
600060
(600-060)		 60 3-5/16" 4-1/4"
600064
(600-064)		 64 2-1/2" 4-1/2"
600072
(600-072)		 72 3" 5"
600080
(600-080)		 80 3-1/2" 5-1/2"
600088
(600-088)		 88 4" 6"
600096
(600-096)		 96 4-1/2" 6-1/2"
600104
(600-104)		 104 5" 7"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
