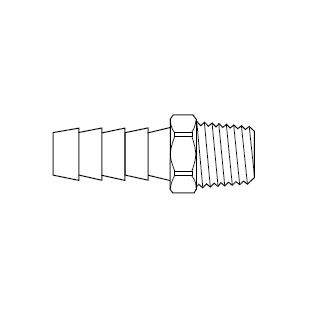

6000617 THERMOBARB® by NewAge | Brass Barbed Fitting Male Adapter | 0.188" Hose ID x 0.250" Male NPTF | Bag of 10

6000617 THERMOBARB® by NewAge | Brass Barbed Fitting Male Adapter | 0.188" Hose ID x 0.250" Male NPTF | Bag of 10

Save $0.73 Save $0.73
$15.00
$15.00 - $15.00
$15.00
$14.27
$14.27 - $14.27
$14.27

PRODUCT DESCRIPTION

NewAge Industries - THERMOBARB® - Brass Barbed Fittings - Male Adapters

Package Quantity: 10 EA

Specifications for Variant SKU: 6000617 NewAge | 10 |
Brand: THERMOBARB
Shape (Orientation): Straight
Ends Configuration: 3/16in Hose Barb, 1/4in Male NPTF
Material(s): Brass
Features:
  • Formed of forged and/or machined brass
  • Tapered pipe threads are made to Dryseal USA specifications
  • An industrial standard -- use in all general purpose applications
  • May be used in potable water systems
Notes:
  • General purpose brass barbed fittings designed for maximum durability. Made of CDA 360 Brass.
  • Working pressure**: 150 psi at 160°F with appropriate clamps.
  • Working temperature**: -40°F to 180°F.
Recommended Clamps:
  • Oetiker® Clamps
  • Kwik Clamps™ - Nylon Double Bond Hose Clamps
  • Worm Gear Clamps - Stainless Steel Clamps

Part Number Dimensions (Hose ID x Thread)
6000491 0.125" x 0.125" Male NPTF
6000505 0.125" x 0.250" Male NPTF
6000617 0.188" x 0.250" Male NPTF
6000813 0.375" x 0.125" Male NPTF
6000827 0.375" x 0.250" Male NPTF
6000932 0.500" x 0.250" Male NPTF
6001177 1" x 1" Male NPTF

** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications, testing recommended.
