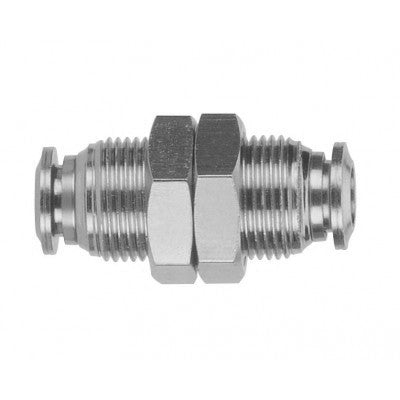

60050-08 AIGNEP | 60/62 Series | Stainless Steel Bulkhead Union | 1/2" Tube Push Connect | FKM Seal

60050-08 by AIGNEP | 60/62 Series | Bulkhead Union | 1/2" Tube Push Connect | FKM Seal | Stainless Steel

Save $0.40

$40.12

$40.12 - $40.12

$40.12

$39.72

$39.72 - $39.72

$39.72

Quantity

Specifications for Variant SKU: 60050-08 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Bulkhead Union Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

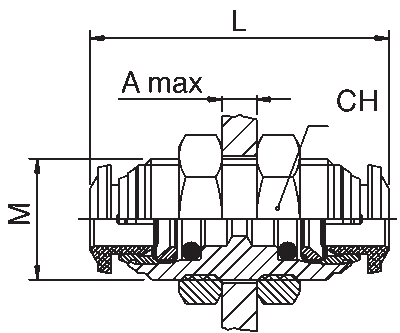

Product Number	Tube	M	CH	L	A Max
60050-53	5/32"	M12 x 1	17 mm	31 mm	7 mm
60050-04	1/4"	M14 x 1	17 mm	35 mm	9 mm
60050-05	5/16"	M16 x 1	19 mm	37 mm	10.5 mm
60050-06	3/8"	M20 x 1	24 mm	42 mm	12.5 mm
60050-08	1/2"	M22 x 1	26 mm	48 mm	16.5 mm
60050-6	6 mm	M14X1	17 mm	35 mm	9.5 mm
60050-10	10 mm	M20X1	26 mm	42 mm	12.5 mm
60050-12	12 mm	M22X1	26 mm	48 mm	16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
