60111X-8-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 8mm Tube x 1/4" Swift-Fit Male

60111X-8-1/4 by AIGNEP | 60/62 Series | Swivel | 8mm Tube x 1/4" Swift-Fit Male | 90° Elbow | Stainless Steel

Save $12.27

$44.75

$44.75 - $44.75

$44.75

$32.48

$32.48 - $32.48

$32.48

Specifications for Variant SKU: 60111X-8-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

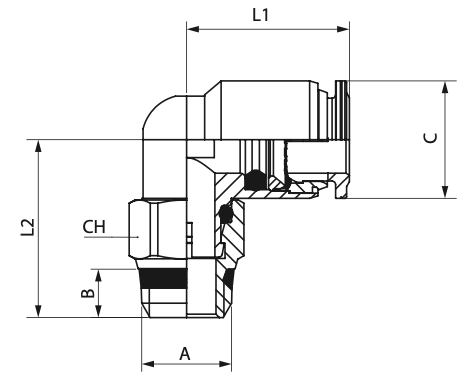

Product Number	Tube	A	B (IN)	B	L1	L2	CH1
60111x-6-1/8	6 mm	1/8"	5.5 mm	12.5 mm	18 mm	17 mm	11 mm
60111x-6-1/4	6 mm	1/4"	7 mm	12.5 mm	18 mm	19 mm	15 mm
60111x-8-1/4	8 mm	1/4"	7 mm	14.5 mm	20 mm	21.5 mm	15 mm
60111x-10-1/4	10 mm	1/4"	7 mm	17 mm	23.5 mm	25.5 mm	15 mm
60111x-10-3/8	10 mm	3/8"	7.5 mm	17 mm	23.5 mm	23.5 mm	17 mm
60111x-10-1/2	10 mm	1/2"	9 mm	17 mm	23.5 mm	27 mm	21 mm
60111x-12-3/8	12 mm	3/8"	7.5 mm	20.5 mm	27.5 mm	26 mm	17 mm
60111x-12-1/2	12 mm	1/2"	9 mm	20.5 mm	27.5 mm	27 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
