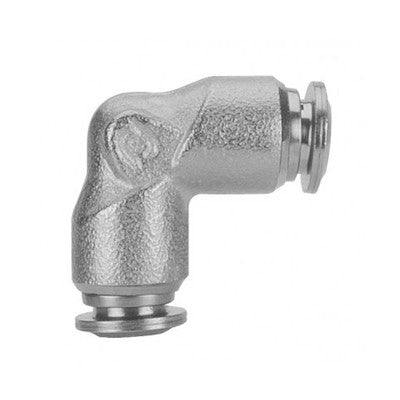

60130-12 AIGNEP | 60/62 Series | Stainless Steel Union 90° Elbow | 12mm Tube Push Connect | FKM Seal

60130-12 by AIGNEP | 60/62 Series | Union | 12mm Tube Push Connect | 90° Elbow | FKM Seal | Stainless Steel

Save $16.94

$67.82

$67.82 - $67.82

$67.82

$50.88

$50.88 - $50.88

$50.88

Specifications for Variant SKU: 60130-12 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Union Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

Product Number	Tube	C	L	CH
60130-04	1/4"	12.5 mm	21 mm	11 mm
60130-06	3/8"	17.5 mm	26 mm	16 mm
60130-08	1/2"	20.5 mm	30.5 mm	19 mm
60130-6	6 mm	12.5 mm	21 mm	11 mm
60130-10	10 mm	17.5 mm	26 mm	16 mm
60130-12	12 mm	20.5 mm	30.5 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
