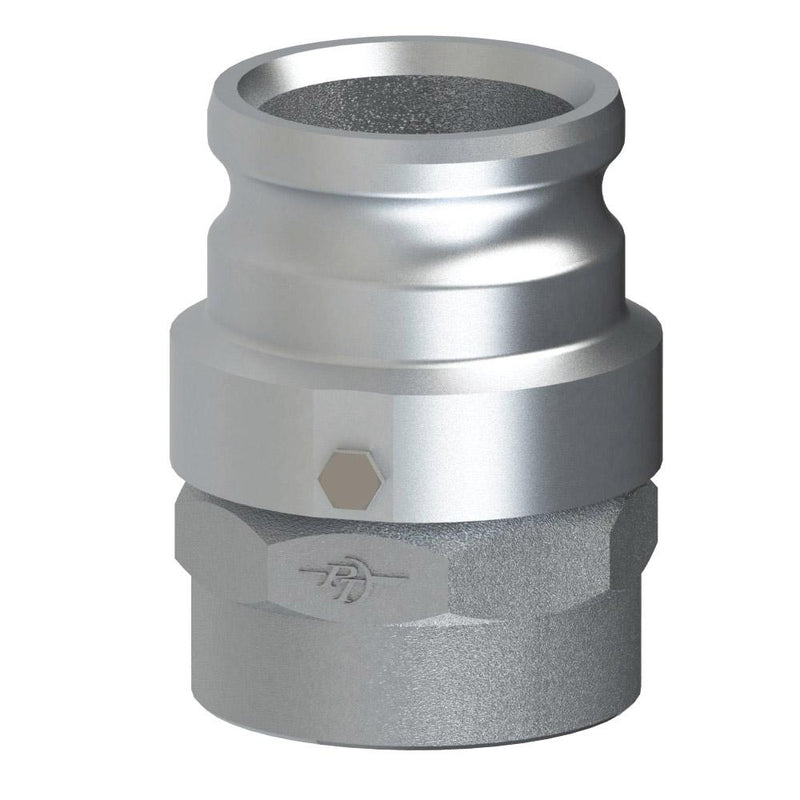

60155000 (50ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type ASV | 5" Swivel Adapter x 5" Female NPT | Aluminum | Viton Seal

Save $182.95

$492.88

$492.88 - $492.88

$492.88

$309.93

$309.93 - $309.93

$309.93

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type ASV | Swivel Adapter x Female NPT | Aluminum | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60155000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	5in Male Cam & Groove, 5in Female NPT
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Available with U-cup Viton® or Buna Seals Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Aluminum Buna Item #	Adapter Size	Female NPT Thread Size	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15ASV	60151500	-	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	250 PSI
20ASV	60152000	-	2"	2"	2.54"	1.72"	2.92"	0.31"	250 PSI
25ASV	-	60152500	2-1/2"	2-1/2"	2.75"	2.14"	3.49"	0.27"	200 PSI
30ASV	60153000	60153100	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI
40ASV	60154000	60154100	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI
50ASV	60155000	-	5"	5"	3.22"	4.79"	6.49"	0.35"	75 PSI
60ASV	60156000	-	6"	6"	3.35"	5.90"	7.70"	0.60"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
