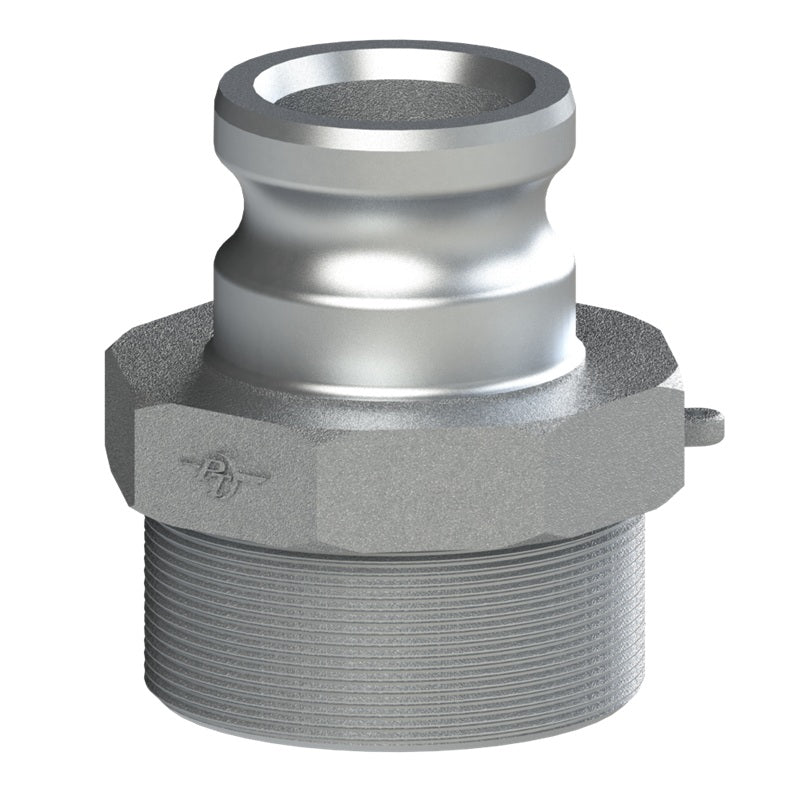

60161510 (15X10F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 1-1/2" Adapter x 1" Male NPT | Aluminum

60161510 (15X10F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 1-1/2" Adapter x 1" Male NPT | Aluminum

Save $9.83 Save $9.83
$88.50
$88.50 - $88.50
$88.50
$78.67
$78.67 - $78.67
$78.67

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60161510 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/2in Male Cam & Groove, 1in Male NPT
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10X15F 60161015 1" 1-1/2" 250 PSI
10X20F 60161020 1" 2" 250 PSI
12X15F 60161215 1-1/4" 1-1/2" 250 PSI
15X10F 60161510 1-1/2" 1" 250 PSI
15X20F 60161520 1-1/2" 2" 250 PSI
20X15F 60162015 2" 1-1/2" 250 PSI
20X25F 60162025 2" 2-1/2" 200 PSI
20X30F 60162030 2" 3" 200 PSI
25X30F 60162530 2-1/2" 3" 200 PSI
30X15F 60163015 3" 1-1/2" 200 PSI
30X20F 60163020 3" 2" 200 PSI
30X25F 60163025 3" 2-1/2" 200 PSI
30X40F 60163040 3" 4" 150 PSI
40X20F 60164020 4" 2" 150 PSI
40X25F 60164025 4" 2-1/2" 150 PSI
40X30F 60164030 4" 3" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
