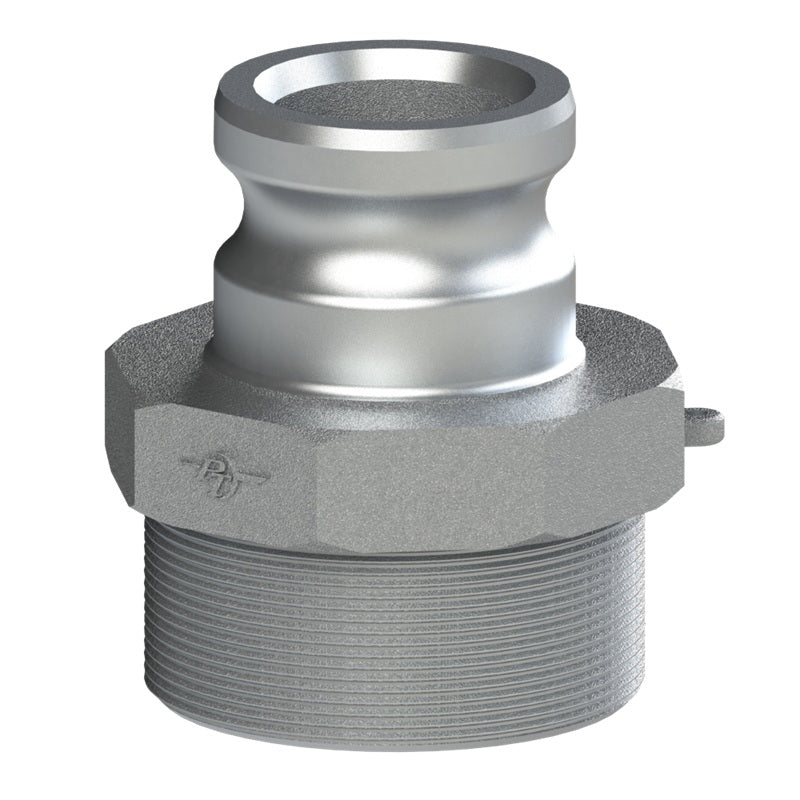

60163020 (30X20F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 3" Adapter x 2" Male NPT | Aluminum

60163020 (30X20F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 3" Adapter x 2" Male NPT | Aluminum

Save $5.35 Save $5.35
$48.11
$48.11 - $48.11
$48.11
$42.76
$42.76 - $42.76
$42.76

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60163020 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 2in Male NPT
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10X15F 60161015 1" 1-1/2" 250 PSI
10X20F 60161020 1" 2" 250 PSI
12X15F 60161215 1-1/4" 1-1/2" 250 PSI
15X10F 60161510 1-1/2" 1" 250 PSI
15X20F 60161520 1-1/2" 2" 250 PSI
20X15F 60162015 2" 1-1/2" 250 PSI
20X25F 60162025 2" 2-1/2" 200 PSI
20X30F 60162030 2" 3" 200 PSI
25X30F 60162530 2-1/2" 3" 200 PSI
30X15F 60163015 3" 1-1/2" 200 PSI
30X20F 60163020 3" 2" 200 PSI
30X25F 60163025 3" 2-1/2" 200 PSI
30X40F 60163040 3" 4" 150 PSI
40X20F 60164020 4" 2" 150 PSI
40X25F 60164025 4" 2-1/2" 150 PSI
40X30F 60164030 4" 3" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
