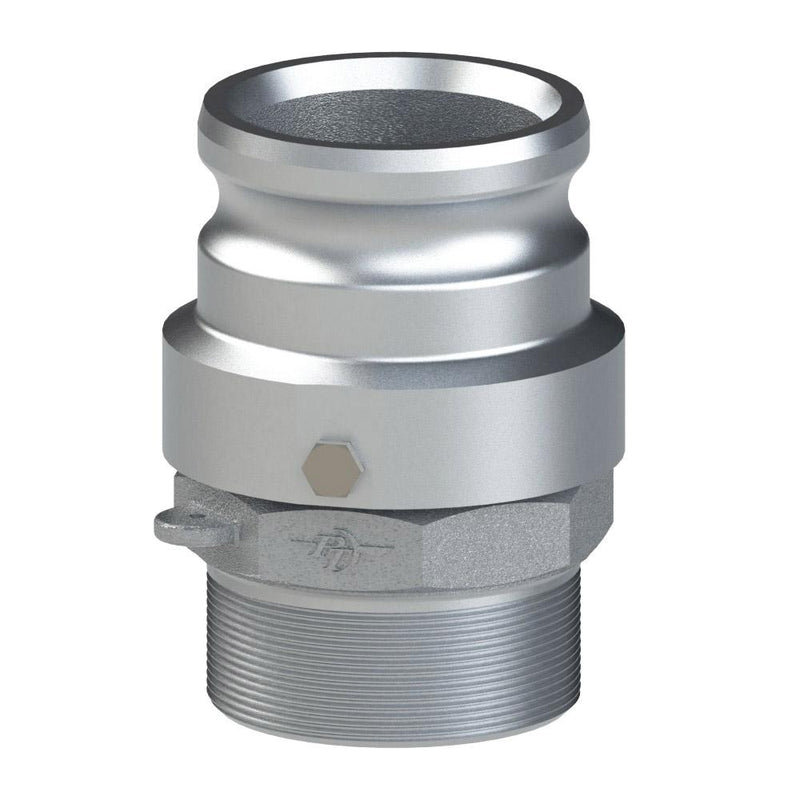

60172000 (20FSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type FSV | 2" Swivel Adapter x 2" Male NPT | Aluminum | Viton Seal

Save $64.54

$173.87

$173.87 - $173.87

$173.87

$109.33

$109.33 - $109.33

$109.33

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type FSV | Swivel Adapter x Male NPT | Aluminum | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60172000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	2in Male Cam & Groove, 2in Male NPT
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Adapter Size	Male NPT Thread Size	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15FSV	60171500	1-1/2"	1-1/2"	3.29"	2.31"	1.34"	2.44"	0.30"	250 PSI
20FSV	60172000	2"	2"	3.57"	2.57"	1.72"	2.84"	0.28"	250 PSI
25FSV	60172500	2-1/2"	2-1/2"	4.18"	2.78"	2.14"	3.45"	0.29"	200 PSI
30FSV	60173000	3"	3"	4.37"	2.87"	2.80"	4.07"	0.44"	200 PSI
40FSV	60174000	4"	4"	4.79"	3.19"	3.78"	5.27"	0.40"	150 PSI
60FSV	60176000	6"	6"	5.20"	3.40"	5.84"	7.70"	0.60"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
