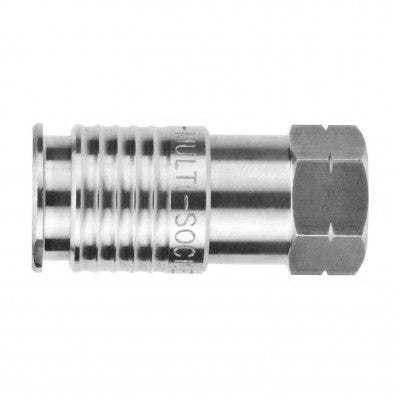

60192-04 AIGNEP | QC Series | 1/4" Multisocket Stainless Steel x 1/4" Female NPTF
60192-04 by AIGNEP | QC Series | 1/4" Multisocket x 1/4" Female NPTF | Stainless Steel
60192-04 AIGNEP | QC Series | 1/4" Multisocket Stainless Steel x 1/4" Female NPTF

60192-04 by AIGNEP | QC Series | 1/4" Multisocket x 1/4" Female NPTF | Stainless Steel

Save $24.21 Save $24.21
$60.52
$60.52 - $60.52
$60.52
$36.31
$36.31 - $36.31
$36.31
Specifications for Variant SKU: 60192-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in AIGNEP Multisocket QD Interchange, 1/4in Female NPTF
Material(s): Stainless Steel

1/4" Female NPTF 316L Stainless Steel

Temperature Range: 5 °- 392 ° F
Media: Compressed Air
Body: Stainless Steel
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
60192-04 FKM NPTF 1/4" 0.533" 13.5 mm 21 mm 52.5 mm 24 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
