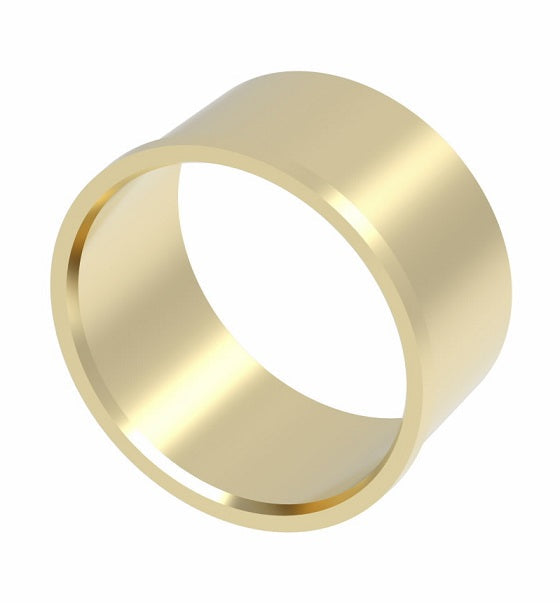

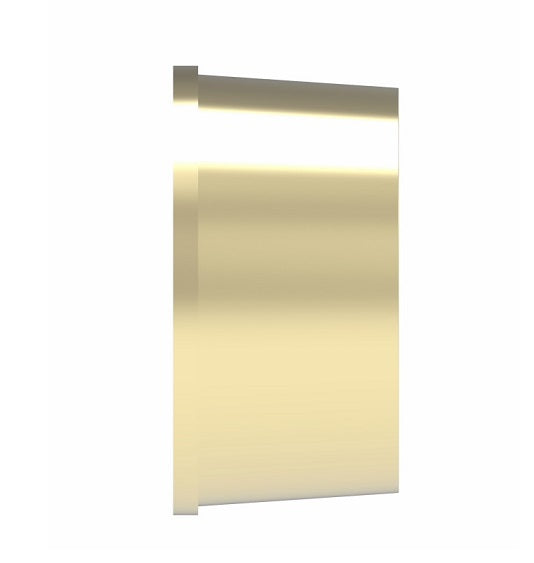

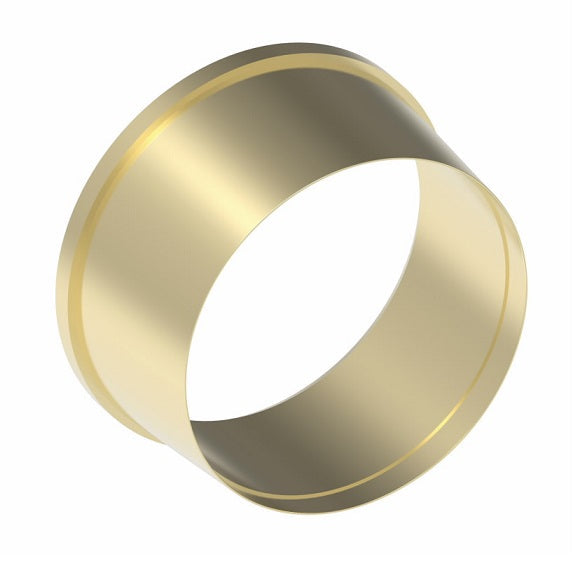

601X2 by Danfoss | SelfAlign Adapter | Sleeve | 1/8" Tube OD | Brass
601X2 by Danfoss | SelfAlign Adapter | Sleeve | 1/8" Tube OD | Brass
601X2 by Danfoss | SelfAlign Adapter | Sleeve | 1/8" Tube OD | Brass
601X2 by Danfoss | SelfAlign Adapter | Sleeve | 1/8" Tube OD | Brass

601X2 by Danfoss | SelfAlign Adapter | Sleeve | 1/8" Tube OD | Brass

$0.49 - $0.49
$0.49
$0.49 - $0.49
$0.49

Aeroquip® by Danfoss
SelfAlign Adapter - Sleeve
Specifications for Variant SKU: 601X2 Danfoss
Shape (Orientation): No Orientation
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. D F L
601X2 1/8" 0.130" 0.25" 0.20"
601X3 3/16" 0.193" 0.31" 0.20"
601X4 1/4" 0.256" 0.38" 0.26"
601X5 5/16" 0.318" 0.44" 0.26"
601X6 3/8" 0.381" 0.50" 0.26"
601X8 1/2" 0.507" 0.62" 0.30"
601X10 5/8" 0.630" 0.72" 0.36"
601X12 3/4" 0.755" 0.88" 0.38"
601X16 1" 1.005" 1.19" 0.50"
