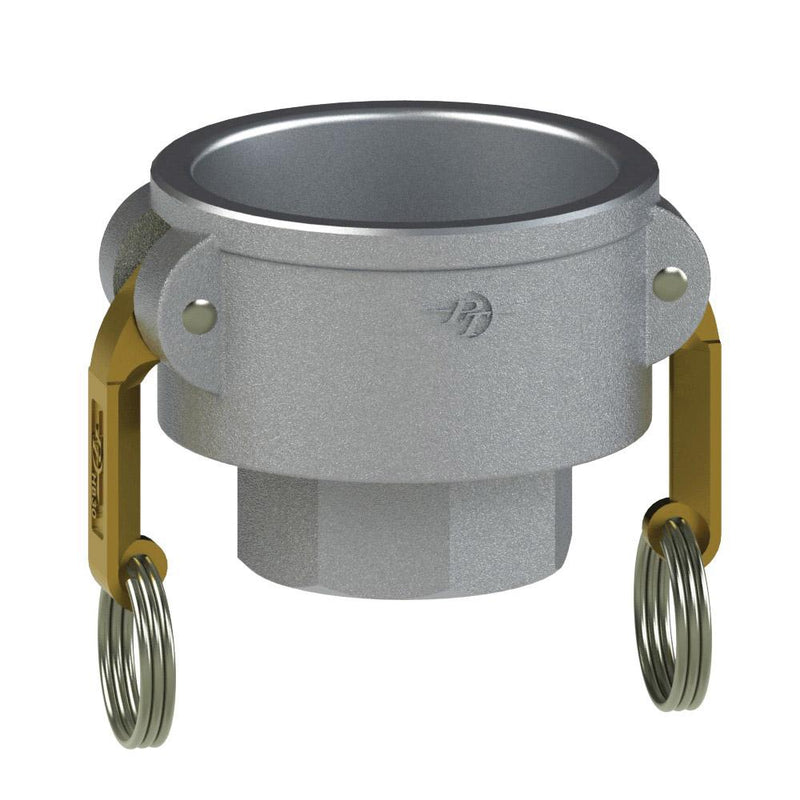

6020000010 (20X15D) by PT-Coupling | Reducing Cam & Groove Adapter | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum/HB | Buna-N Seal

6020000010 (20X15D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 2" Coupler x 1-1/2" Female NPT | Aluminum/HB | Buna-N Seal

Save $5.47

$49.23

$49.23 - $49.23

$49.23

$43.76

$43.76 - $43.76

$43.76

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 6020000010 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15X10D	6020000009	1-1/2"	1"	250 PSI
20X15D	6020000010	2"	1-1/2"	250 PSI
25X20D	6020000012	2-1/2"	2"	200 PSI
30X20D	6020000013	3"	2"	200 PSI
30X25D	6020000014	3"	2-1/2"	200 PSI
40X30D	6020000015	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
