60211X-10-3/8" AIGNEP | 60/62 Series | Swivel Branch Tee Stainless Steel | 10mm Tube x 3/8" Swift-Fit Male

60211X-10-3/8 by AIGNEP | 60/62 Series | Swivel Branch | 10mm Tube x 3/8" Swift-Fit Male | Tee | Stainless Steel

Save $18.80

$77.87

$77.87 - $77.87

$77.87

$59.07

$59.07 - $59.07

$59.07

Specifications for Variant SKU: 60211X-10-3/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	10mm Push-to-Connect, 3/8in Male Swift-Fit, 10mm Push-to-Connect, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Branch Tee Stainless - X Series

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

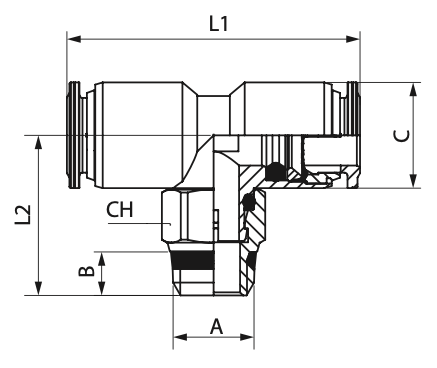

Product Number	Tube	A	B	C	L1	L2	CH
60211x-6-1/8	6 mm	1/8"	5.5 mm	12.5 mm	36 mm	17 mm	11 mm
60211x-6-1/4	6 mm	1/4"	7 mm	12.5 mm	36 mm	19 mm	15 mm
60211x-10-1/4	10 mm	1/4"	7 mm	17 mm	47 mm	25.5 mm	15 mm
60211x-10-3/8	10 mm	3/8"	7.5 mm	17 mm	47 mm	23.5 mm	17 mm
60211x-10-1/2	10 mm	1/2"	9 mm	17 mm	47 mm	27 mm	21 mm
60211x-12-3/8	12 mm	3/8"	7.5 mm	20.5 mm	55 mm	26 mm	17 mm
60211x-12-1/2	12 mm	1/2"	9 mm	20.5 mm	55 mm	27 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
