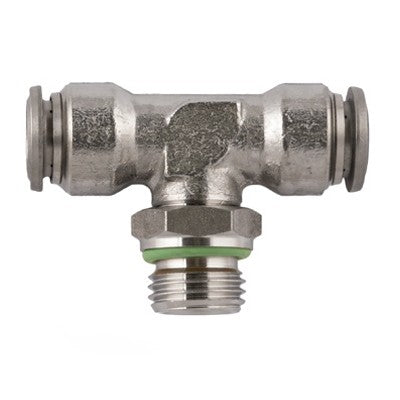

60215-8-1/8" AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 8mm (5/16") Tube Push Connect x 1/8" Male BSPP | FKM Seal

60215-8-1/8 by AIGNEP | 60/62 Series | Swivel Branch | 8mm (5/16") Tube Push Connect x 1/8" Male BSPP | Tee | FKM Seal | Stainless Steel

Save $14.71

$57.16

$57.16 - $57.16

$57.16

$42.45

$42.45 - $42.45

$42.45

Specifications for Variant SKU: 60215-8-1/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	8mm Push-to-Connect, 1/8in Male BSPP
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Branch Tee Stainless - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

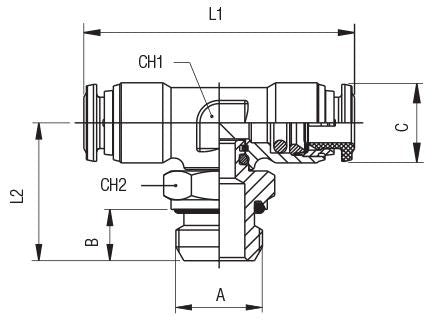

Product Number	Tube	A	B	C	L1	L2	CH1	CH2
60215-4-M5	4 mm	M5	4 mm	10 mm	36 mm	15 mm	9 mm	8 mm
60215-4-1/8	4 mm	1/8"	6 mm	10 mm	36 mm	18 mm	9 mm	13 mm
60215-4-1/4	4 mm	1/4"	8 mm	10 mm	36 mm	20.5 mm	9 mm	15 mm
60215-6-1/8	6 mm	1/8"	6 mm	12.5 mm	42 mm	19 mm	11 mm	13 mm
60215-6-1/4	6 mm	1/4"	8 mm	12.5 mm	42 mm	21.5 mm	11 mm	15 mm
60215-8-1/8	8 mm	1/8"	6 mm	14.5 mm	45 mm	20 mm	12 mm	13 mm
60215-8-1/4	8 mm	1/4"	8 mm	14.5 mm	45 mm	22 mm	12 mm	15 mm
60215-10-1/4	10 mm	1/4"	8 mm	17.5 mm	52 mm	23.5 mm	16 mm	15 mm
60215-10-3/8	10 mm	3/8"	9 mm	17.5 mm	52 mm	27 mm	16 mm	21 mm
60215-10-1/2	10 mm	1/2"	10 mm	17.5 mm	52 mm	29.5 mm	16 mm	22 mm
60215-12-3/8	12 mm	3/8"	9 mm	20.5 mm	61 mm	29 mm	19 mm	21 mm
60215-12-1/2	12 mm	1/2"	10 mm	20.5 mm	61 mm	31.5 mm	19 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
