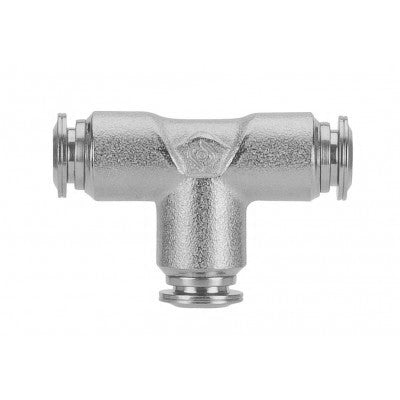

60230-04 AIGNEP | 60/62 Series | Stainless Steel Union Tee | 1/4" Tube Push Connect | FKM Seal
60230-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | Tee | FKM Seal | Stainless Steel
60230-04 AIGNEP | 60/62 Series | Stainless Steel Union Tee | 1/4" Tube Push Connect | FKM Seal

60230-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | Tee | FKM Seal | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 60230-04 AIGNEP
Series: 60/62 Series
Shape (Orientation): Tee
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Union Tee Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

Product Number Tube C L1 L2 CH
60230-04 1/4" 12.5 mm 42 mm 21 mm 11 mm
60230-06 3/8" 17.5 mm 52 mm 26 mm 16 mm
60230-08 1/2" 20.5 mm 60.5 mm 30.5 mm 19 mm
60230-6 6 mm 12.5 mm 42 mm 21 mm 11 mm
60230-10 10 mm 17.5 mm 52 mm 26 mm 16 mm
60230-12 12 mm 20.5 mm 60.5 mm 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
