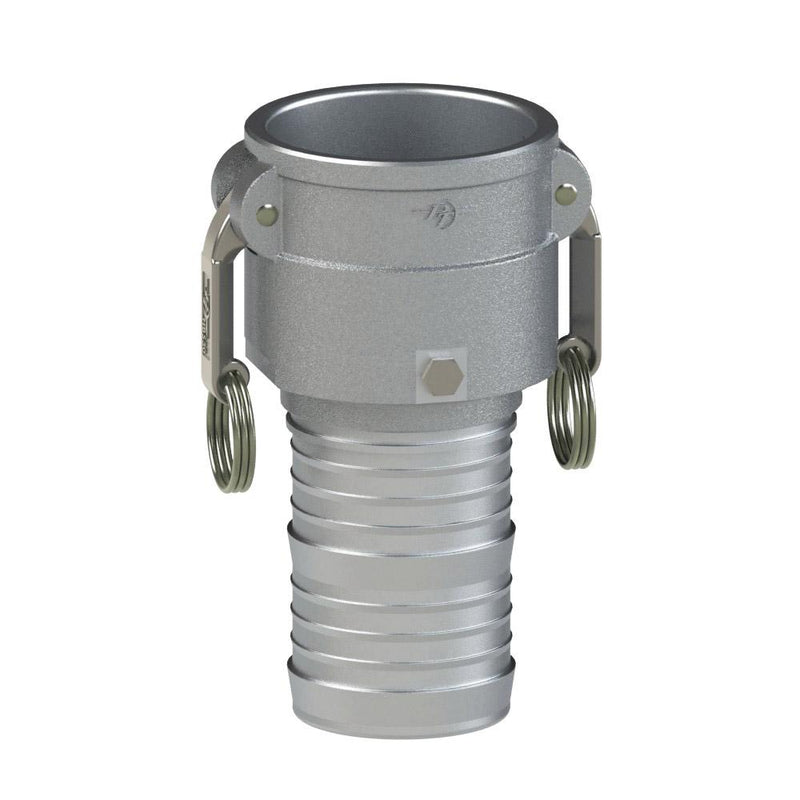

60236000 (60CSV) by PT-Coupling | Swivel Cam & Groove Fitting | Type CSV | 6" Swivel Coupler x 6" Hose Shank | Aluminum | Viton Seal

Save $253.45

$682.80

$682.80 - $682.80

$682.80

$429.35

$429.35 - $429.35

$429.35

PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type CSV | Swivel Coupler x Hose Shank | Aluminum | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60236000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	6in Female Cam & Groove, 6in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
15CSV	60231500	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15"	250 PSI
20CSV	60232000	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	250 PSI
25CSV	60232500	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	200 PSI
30CSV	60233000	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	200 PSI
40CSV	60234000	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	150 PSI
50CSV	60235000	5"	5"	11.67"	7.57"	7.24"	2.44"	4.53"	4.43"	75 PSI
60CSV	60236000	6"	6"	16.26"	10.16"	9.50"	2.70"	5.53"	5.43"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
