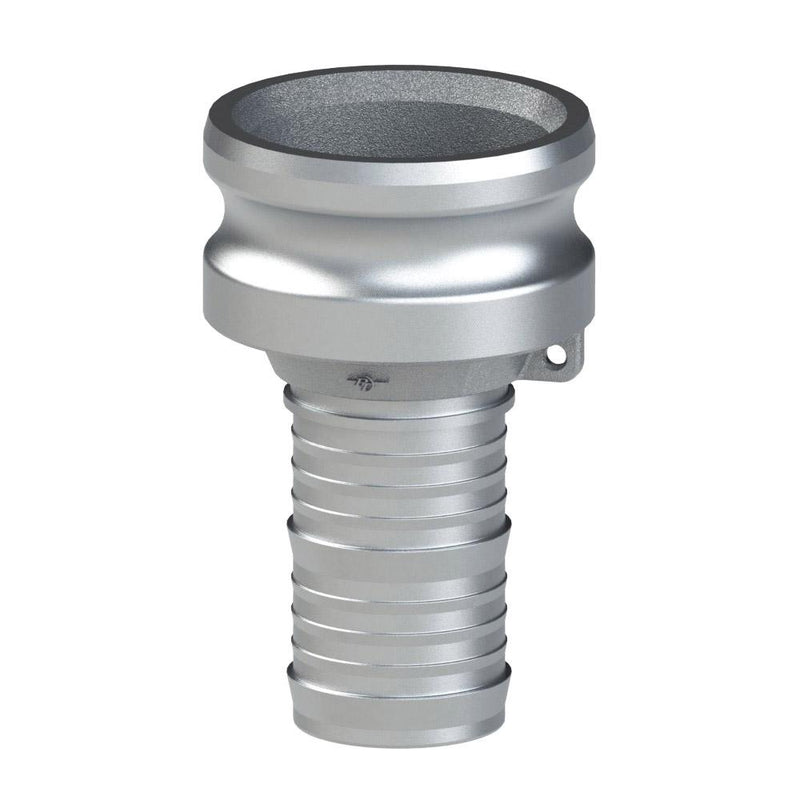

60241007 (10X07E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 1" Adapter x 3/4" Hose Shank | Aluminum

Name: 60241007 (10X07E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 1" Adapter x 3/4" Hose Shank | Aluminum
Brand: PT-Coupling
SKU: 60241007 PT-Coupling
Price: 39.35 USD
Availability: InStock

Save $4.92

$44.27

$44.27 - $44.27

$44.27

$39.35

$39.35 - $39.35

$39.35

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 60241007 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	1in Male Cam & Groove, 3/4in Hose Barb
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
10X07E	60241007	1"	3/4"	250 PSI
15X10E	60241510	1-1/2"	1"	250 PSI
20X15E	60242015	2"	1-1/2"	250 PSI
20X25E	60242025	2"	2-1/2"	200 PSI
30X20E	60243020	3"	2"	200 PSI
30X25E	60243025	3"	2-1/2"	200 PSI
40X30E	60244030	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
