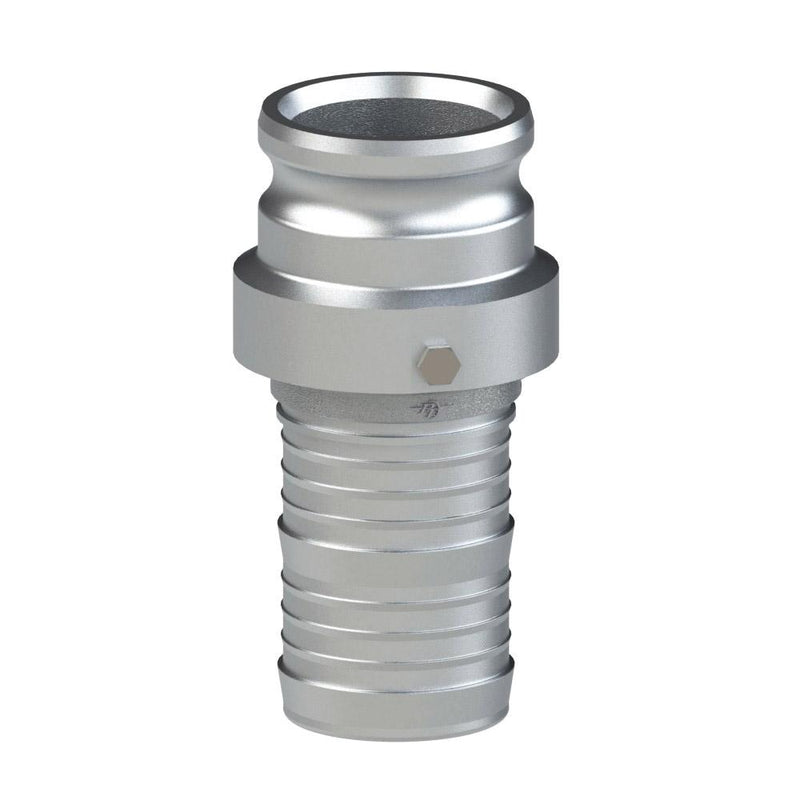

60256000 (60ESV) by PT-Coupling | Swivel Cam & Groove Fitting | Type ESV | 6" Swivel Adapter x 6" Hose Shank | Aluminum | Viton Seal

Save $218.65

$589.02

$589.02 - $589.02

$589.02

$370.37

$370.37 - $370.37

$370.37

PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type ESV | Swivel Adapter x Hose Shank | Aluminum | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60256000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	6in Male Cam & Groove, 6in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA.


Part Name	Aluminum Viton® Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Max. Allowable Working Press. (PSI)*
15ESV	60251500	1-1/2"	1-1/2"	2.14"	5.10"	250 PSI
20ESV	60252000	2"	2"	2.64"	5.75"	250 PSI
30ESV	60253000	3"	3"	3.70"	6.88"	200 PSI
40ESV	60254000	4"	4"	4.71"	7.20"	150 PSI
50ESV	60255000	5"	5"	6.56"	7.56"	75 PSI
60ESV	60256000	6"	6"	7.10"	10.10"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
