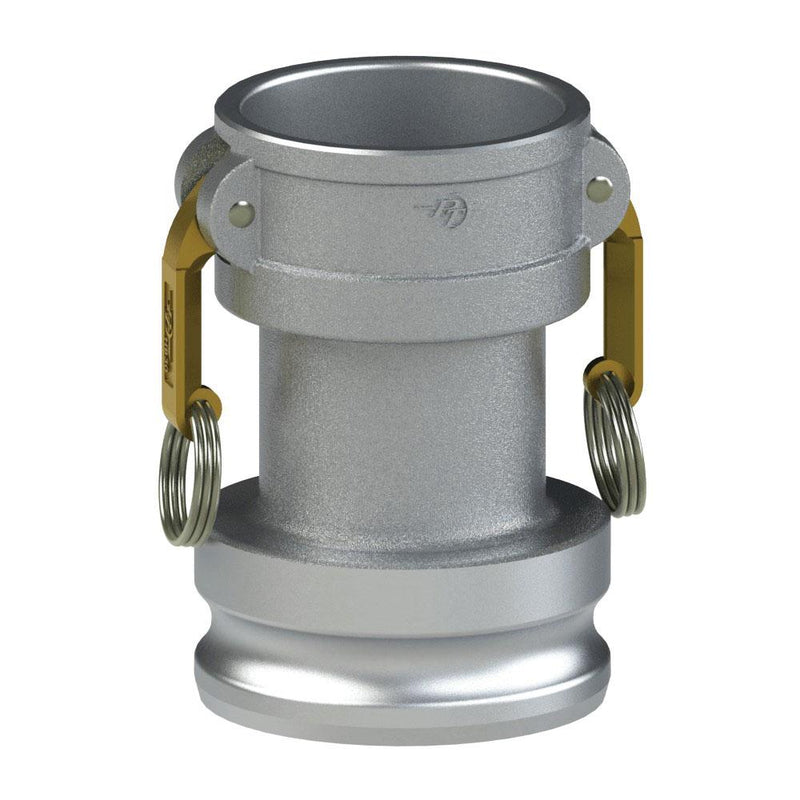

6026000035 (30CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 3" Coupler x 4" Adapter | Aluminum/HB | Buna-N Seal

6026000035 (30CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 3" Coupler x 4" Adapter | Aluminum/HB | Buna-N Seal

Save $43.89 Save $43.89
$118.22
$118.22 - $118.22
$118.22
$74.33
$74.33 - $74.33
$74.33

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6026000035 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 4in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
10CX15A LONG 6026000024 1" 1-1/2" 250 PSI
15CX10A LONG 6026000025 1-1/2" 1" 250 PSI
15CX20A LONG 6026000026 1-1/2" 2" 250 PSI
20CX10A LONG 6026000042 2" 1" 250 PSI
20CX15A LONG 6026000027 2" 1-1/2" 250 PSI
20CX30A LONG 6026000028 2" 3" 200 PSI
20CX40A LONG 6026000029 2" 4" 150 PSI
25CX20A LONG 6026000030 2-1/2" 2" 200 PSI
30CX15A LONG 6026000032 3" 1-1/2" 200 PSI
30CX25A LONG 6026000034 3" 2-1/2" 200 PSI
30CX40A LONG 6026000035 3" 4" 150 PSI
40CX25A LONG 6026000037 4" 2-1/2" 150 PSI
40CX50A LONG 6026000039 4" 5" 75 PSI
40CX60A LONG 6026000040 4" 6" 75 PSI
50CX40A LONG 6026000041 5" 4" 75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
