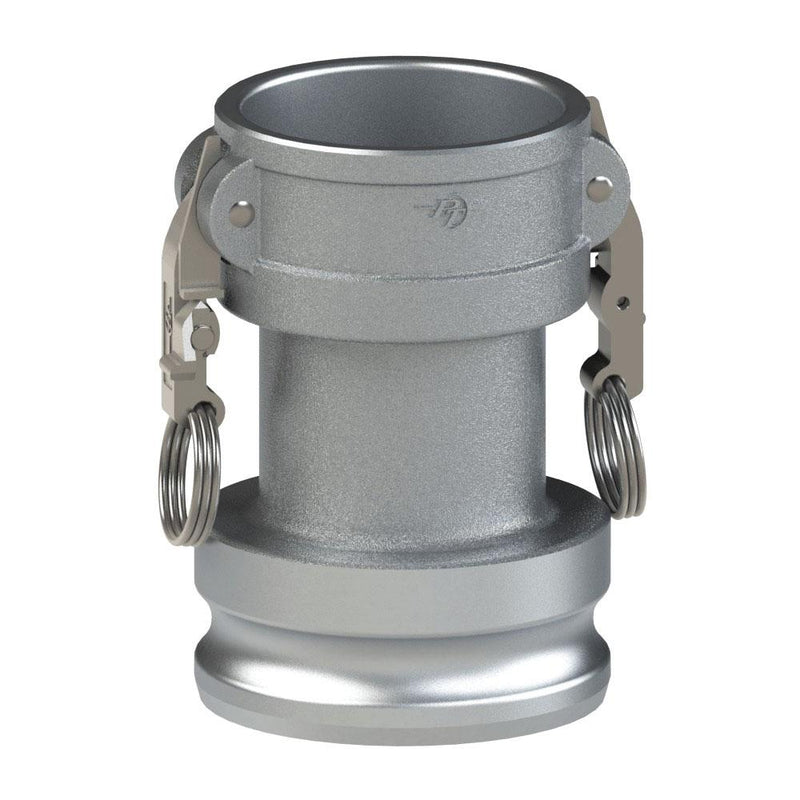

60261520L2 (15CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 1-1/2" Coupler x 2" Adapter | Aluminum/SLS | Buna-N Seal

60261520L2 (15CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 1-1/2" Coupler x 2" Adapter | Aluminum/SLS | Buna-N Seal

Save $44.55 Save $44.55
$120.00
$120.00 - $120.00
$120.00
$75.45
$75.45 - $75.45
$75.45

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type CXA | Long | Coupler x Adapter | Aluminum/SLS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60261520L2 PT-Coupling
Series: STA-LOK II
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1-1/2in Female Cam & Groove, 2in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • SLS cam arms are made of 316 Stainless Steel.
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
10CX15A SLII 60261015L2 1" 1-1/2" 250 PSI
15CX20A SLII 60261520L2 1-1/2" 2" 250 PSI
20CX10A SLII 60262010L2** 2" 1" 250 PSI
20CX15A SLII 60262015L2 2" 1-1/2" 250 PSI
20CX30A SLII 60262030L2 2" 3" 200 PSI
20CX40A SLII 60262040L2 2" 4" 150 PSI
25CX20A SLII 60262520L2 2-1/2" 2" 200 PSI
30CX20A SLII 6026302GL2 3" 2" 200 PSI
30CX25A SLII 60263025L2 3" 2-1/2" 200 PSI
30CX40A SLII 60263040L2 3" 4" 150 PSI
30CX60A SLII 60263060L2** 3" 6" 75 PSI
40CX30A SLII 6026403GL2 4" 3" 150 PSI
40CX50A SLII 60264050L2 4" 5" 75 PSI
40CX60A SLII 60264060L2 4" 6" 75 PSI
50CX40A SLII 60265040L2 5" 4" 75 PSI
60CX80A SLII 60266080L2 6" 8" 50 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
