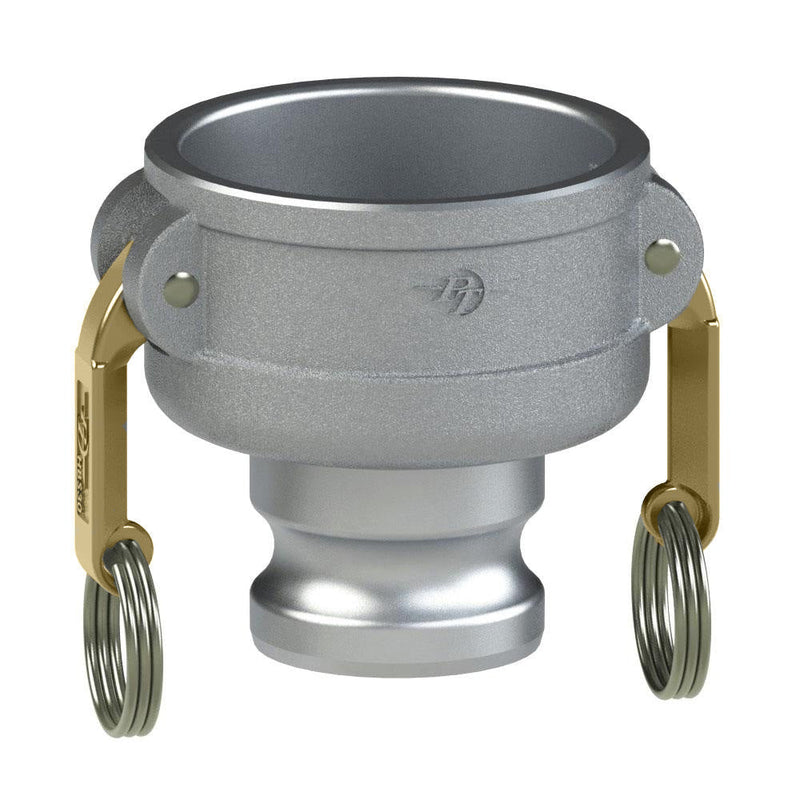

60266040 (60CX40A SHORT) by PT-Coupling | Short Reducing Cam & Groove Adapter | Type CXA | 6" Coupler x 4" Adapter | Aluminum/HB | Buna-N Seal

60266040 (60CX40A SHORT) by PT-Coupling | Short Reducing Cam & Groove Coupler | Type CXA | 6" Coupler x 4" Adapter | Aluminum/HB | Buna-N Seal

Save $83.45

$224.82

$224.82 - $224.82

$224.82

$141.37

$141.37 - $141.37

$141.37

PT Coupling
Short Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Aluminum/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60266040 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	6in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
30CX20A SHORT	6026000033	3"	2"	200 PSI
40CX20A SHORT	6026000036	4"	2"	150 PSI
40CX30A SHORT	6026000038	4"	3"	150 PSI
60CX30A SHORT	60266030	6"	3"	75 PSI
60CX40A SHORT	60266040	6"	4"	75 PSI

** Denotes parts are produced as welded fabrication
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
